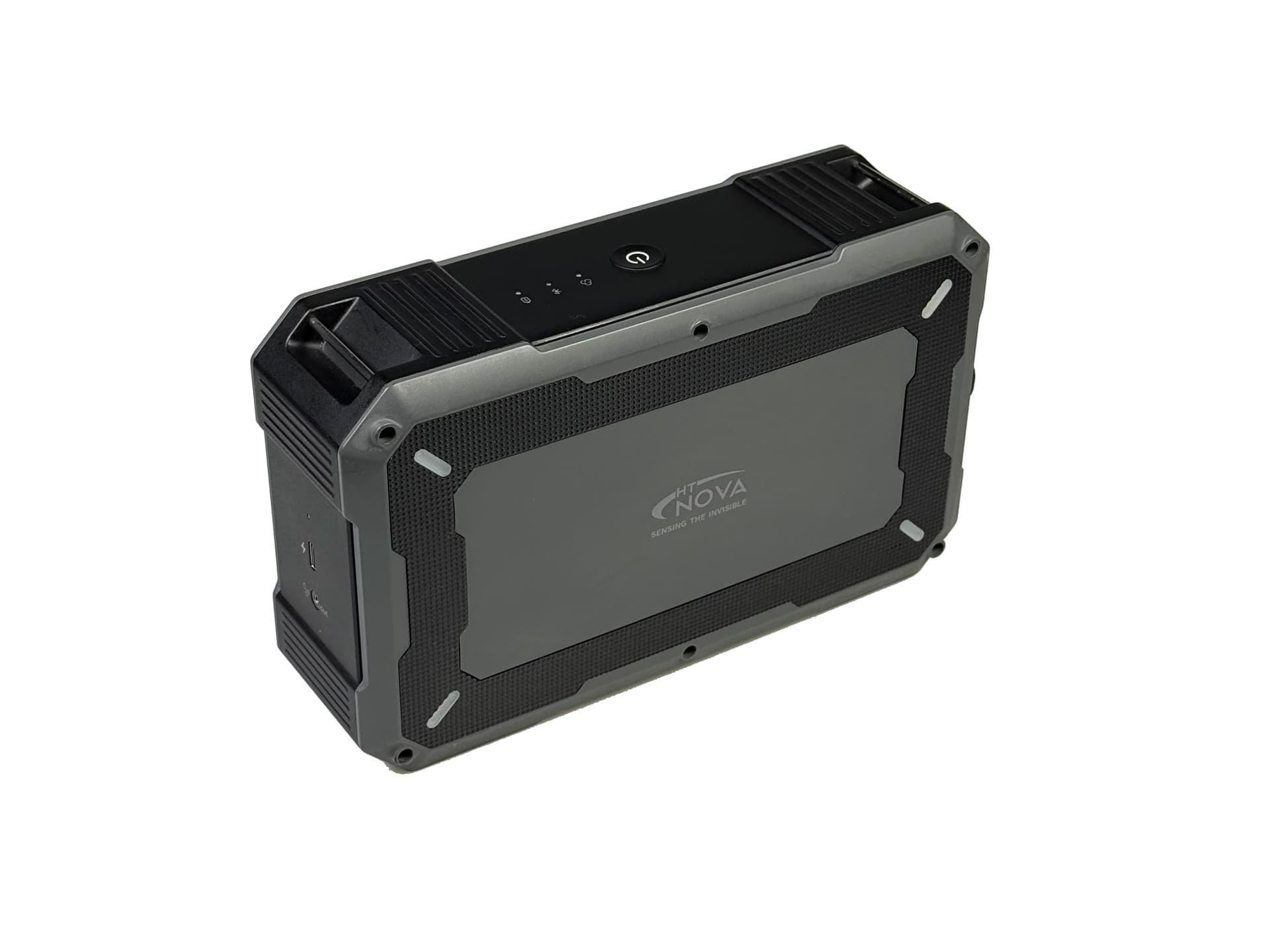

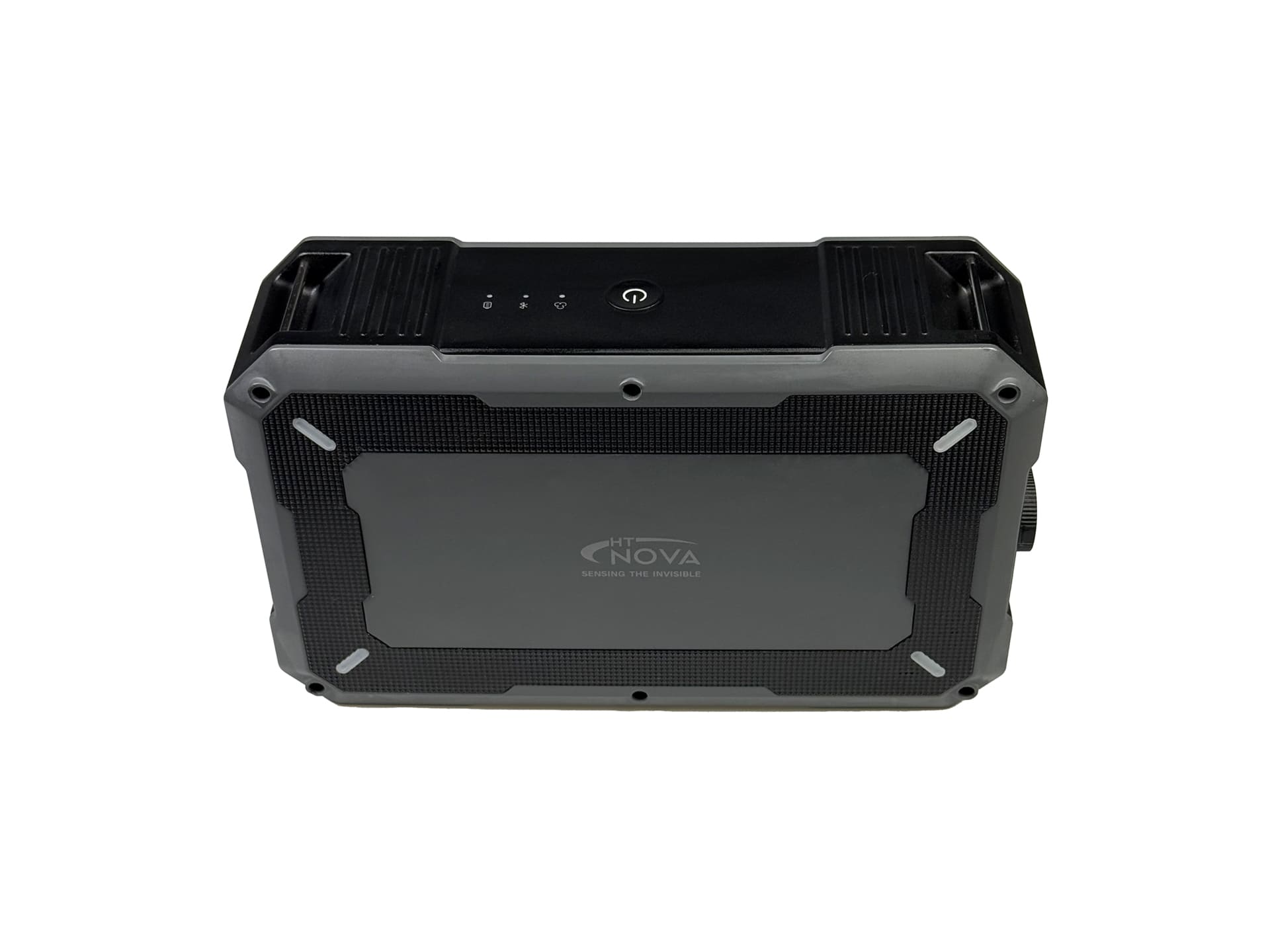

Portable Gas Chromatography Analyzer
The CP-1000 Portable Gas Chromatography Analyzer is designed for rapid detection of various VOCs in gas samples, providing both qualitative and quantitative analysis of target components. Its compact and lightweight design, combined with a battery-powered system, enables flexible use in a wide range of field environments and significantly improves analysis speed and detection efficiency. It can continuously measure total concentrations of multiple volatile organic compounds in continuous monitoring mode and can perform quasi-continuous analysis of specific hazardous substances in workplace air and explosive-risk areas under analysis mode.
Highly Integrated Design:
All system configurations required for online monitoring of benzene-series characteristic factors are integrated within the portable instrument, solving the challenges of transportation, carrying and operation for field personnel.
Intelligent Automation:
Equipped with an intelligent automated workflow from sample injection to data analysis, reducing operational complexity and improving on-site efficiency.
High Sensitivity:
Utilizes advanced detector technologies such as PID sensors, achieving detection sensitivity down to ppb levels, suitable for trace VOC detection.
Wide Detection Coverage:
Built-in library of more than 30 VOC target compounds, with the ability to add more substances based on user requirements.
High Integrability:
Lightweight and compact design allows mounting on various mobile platforms including vehicles, drones and robots for mobile detection tasks.
|
Specification |
Detail |
|
Startup Time |
No more than 10 minutes |
|
Operating Modes |
Patrol mode, automatic component analysis, manual analysis mode |
|
Analysis Cycle |
Minimum 60 seconds, maximum detection time no more than 300 seconds |
|
Communication |
WiFi, GPS, Bluetooth, RS232 |
|
Battery Life |
Built-in power supply, operating time over 6 hours |
|
Dimensions |
≤ 225 × 135 × 66 mm |
