Multifunctional Gas Detector

VP200

Name: VP200
Brand: HT-Nova

VP200 is a handheld photoionization gas detector that measures trace, ppb-level concentrations of volatile organic compounds and alarms when thresholds are exceeded. It detects over 200 VOCs and also alarms for inorganic toxic gases including ammonia, phosphine, arsine and hydrogen sulfide.

Request information Downloads

Overview

Product information at a glance

VP200 is designed for work where exposure is the risk rather than an immediate explosive hazard: leak surveys, confined-space entry, industrial hygiene rounds and incident perimeters, where concentrations matter long before they reach a level anyone can smell.

One instrument serves two working styles. In diffusive mode it is compact and wearable, monitoring the air around the person carrying it throughout a shift. In pump-suction mode the same device becomes an active survey tool for checking specific points, joints and enclosures. The PID sensor's detection range is adjustable to suit the task.

Photoionization gives wide range, rapid response and stable readings without a radioactive source, which simplifies transport and storage. A man-down remote alarm calls for help if the operator stops moving, and wireless communication links the detector to a mobile app and monitoring platform so readings are visible beyond the person holding it.

Visual reference

Product gallery

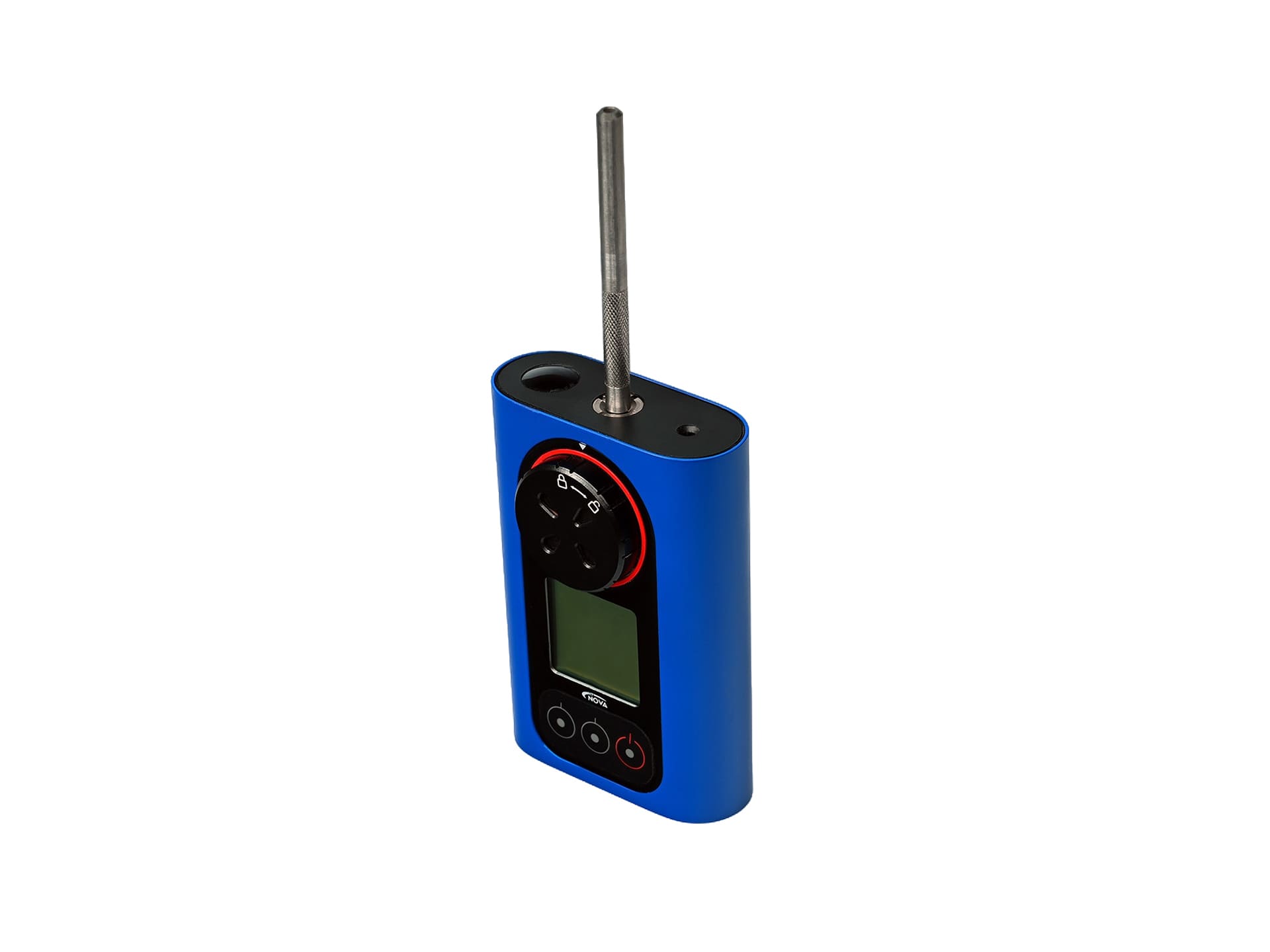

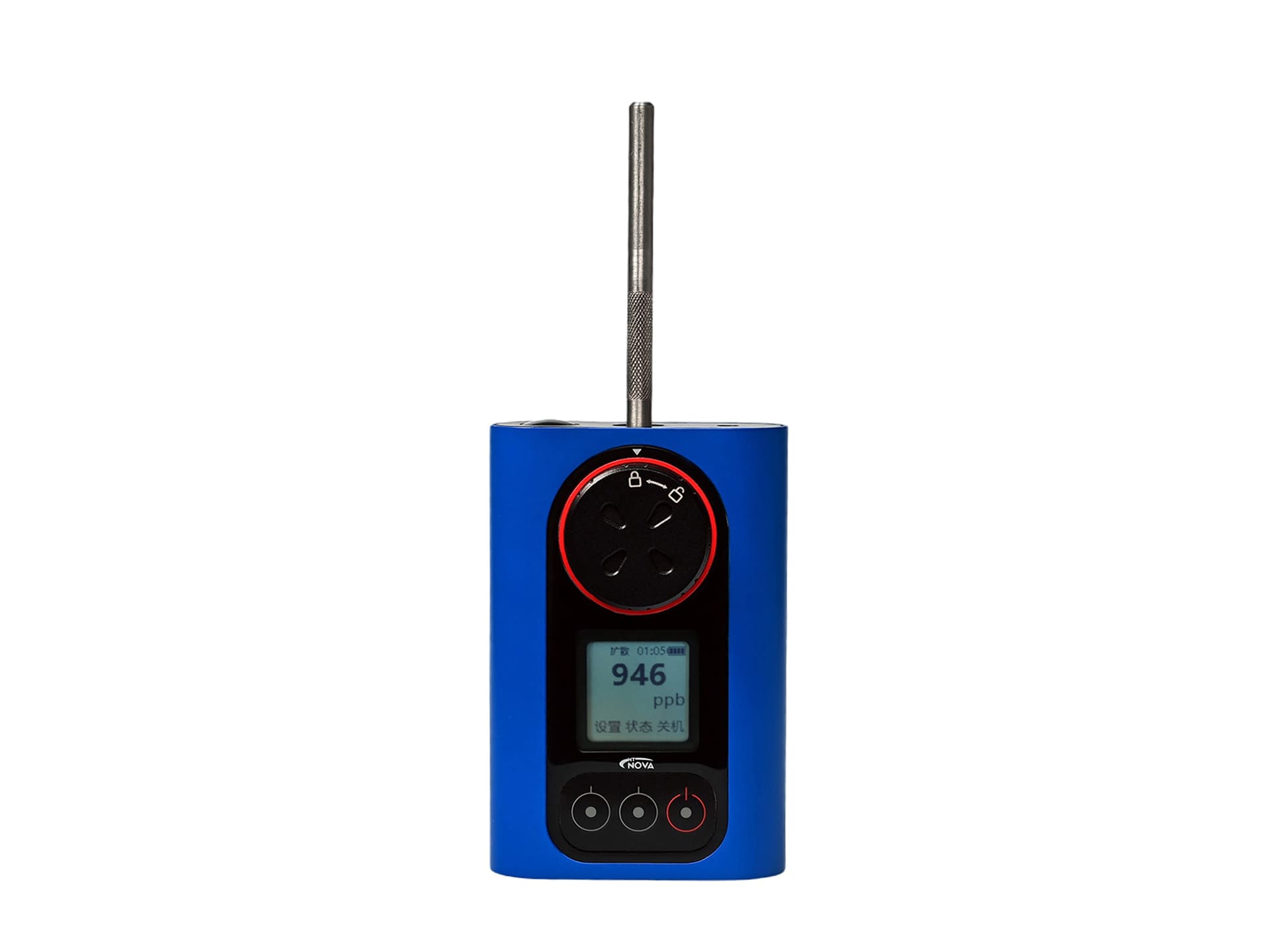

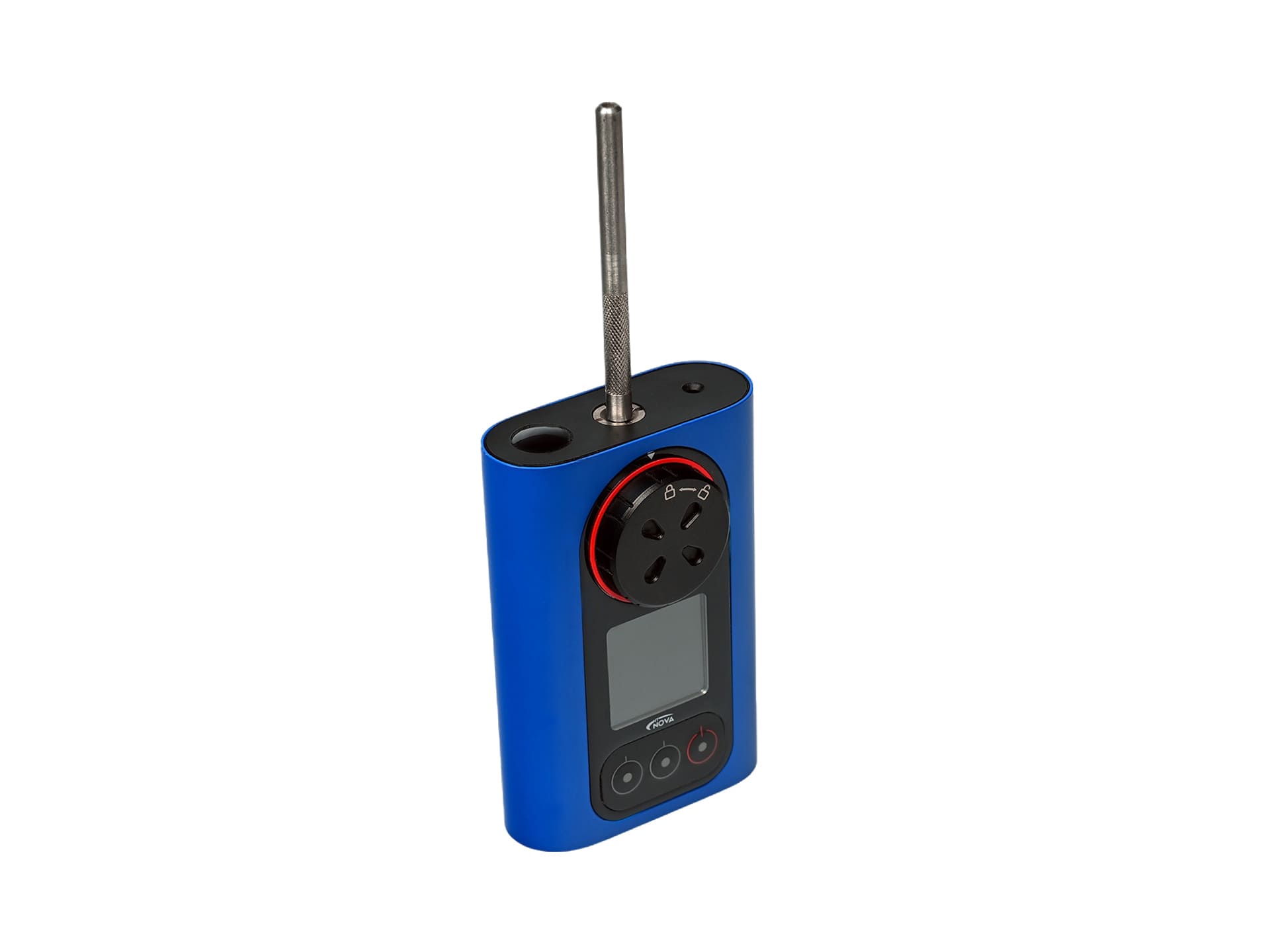

01VP200

02VP200

03VP200

04VP200

Key information

Product features

High sensitivity, fast response

Capable of detecting a diverse range of gases

PID sensor detection range can be adjusted

Versatile, with two freely switchable operating modes-wearable diffusive and handheld pump suction

Fall detection and remote alarm

If the user was to fall down, the device will issue a remote alarm to allow for the emergency rescue of the operating personnel

Wireless communication, compatible with mobile app, interconnected with platform system

No radioactive source

Compact size, lightweight

Technical data

Technical specifications

Pump flow rate: 400ml/min, equipped with a metal dust filter
Sampling method: Pump suction/diffusion type
Alarm method: Audible, visual, and vibration alarms
Continuous working time: Diffusion mode ≥12 hours, pump suction mode ≥10 hours
Measurement unit: Supports switching between concentration units such as ppb, ppm, mg/m3
Operating temperature: -20℃ to +55℃
Dimensions: Diffusion mode dimensions: ≤120x80x35mm, Pump suction mode dimensions: ≤290x80x35mm
Weight: Diffusion mode weight: ≤0.7 kg, Pump suction mode weight: ≤1.5 kg

Application areas
