Multi-functional Nuclear And Radiation Detector
RG800
RG800 is a multi-functional nuclear and radiation detector covering both radiation dose rate and surface contamination. It measures alpha and beta surface contamination alongside X-ray and gamma dose rates and accumulated dose, alerting personnel through configurable audible, visual and vibration alarms.
Overview
Product information at a glance
Radiological assessment normally needs two instruments: one for the field around you and one for what has settled on surfaces. RG800 covers both, which means a team entering an area carries a single device and can move between the two questions without changing equipment.

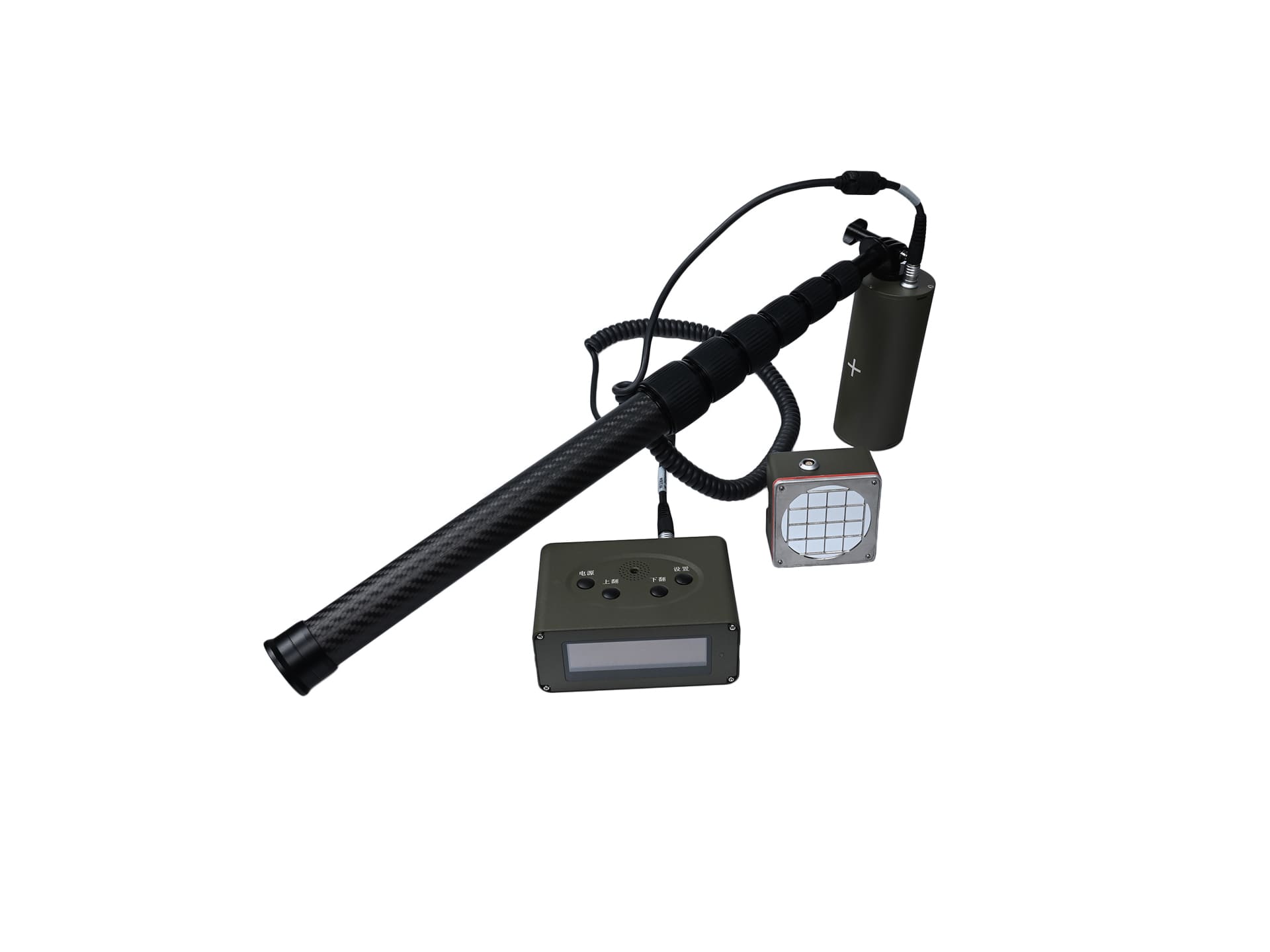

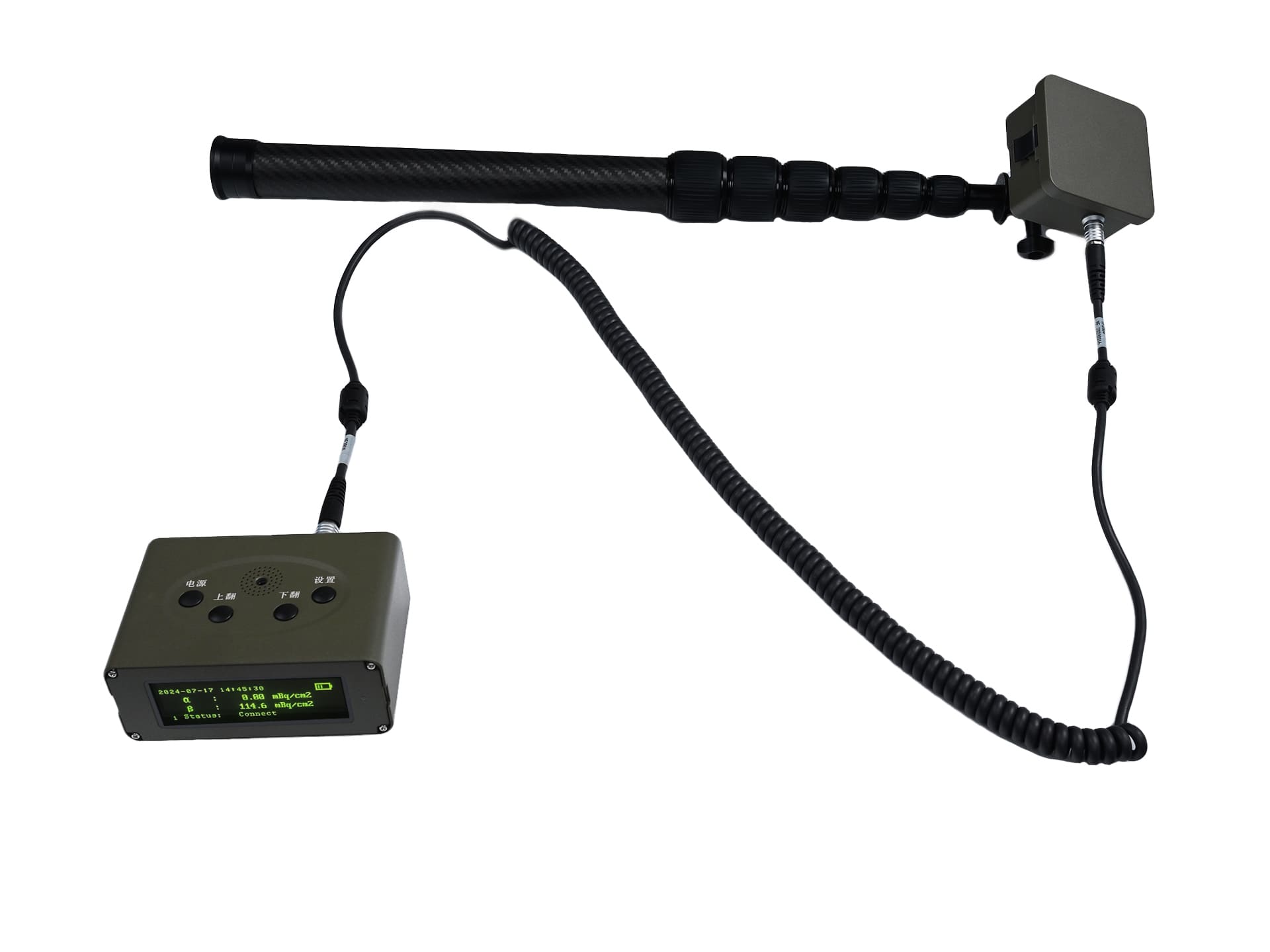

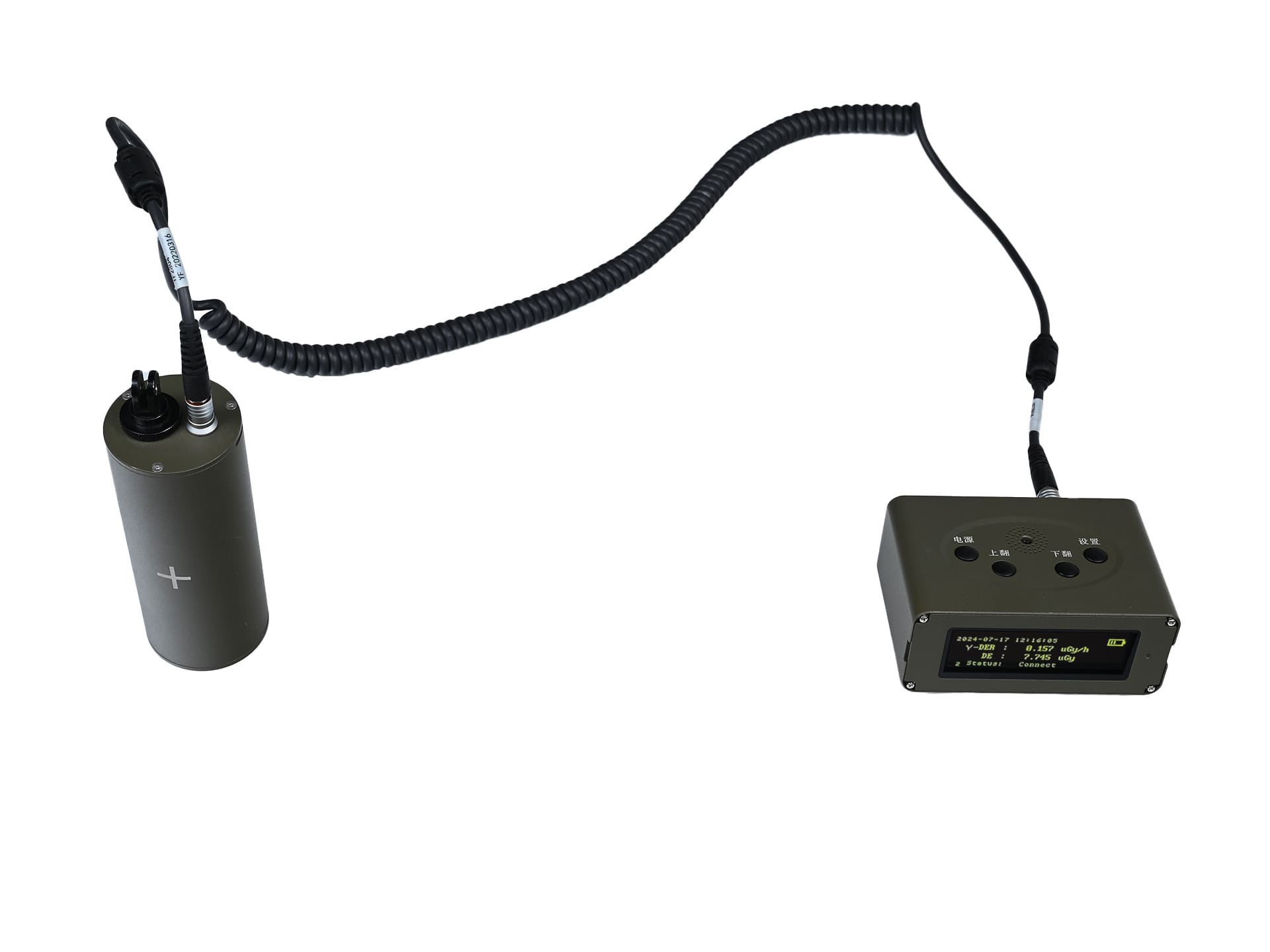

The detector is built as a central unit with a dose-rate measuring unit and a surface-contamination measuring unit, connected by four-core cables that carry both power and real-time communication. Because the units are separate, the measuring head can be positioned where the reading is needed while the operator keeps hold of the central unit and stays back from the surface - the arrangement extends reach by at least two metres for wider coverage.
Alarm thresholds are set to the task, and warnings arrive as sound, flashing light and vibration together so they register through protective equipment and in noise. The build is rugged, for use where contamination is being surveyed rather than in controlled conditions.
Visual reference
Product gallery
02RG800
View 02
03RG800
View 03
04RG800
View 04
Key information
Product features
The instrument possesses high sensitivity for detecting α and β surface contamination
Extended detection coverage
With an extendable range, it effectively increases the detection area, providing enhanced coverage and flexibility for monitoring purposes
Rugged design
Technical data
Technical specifications
- Detection Functions
- α and β surface contamination, as well as X and γ radiation dose rates and cumulative doses
- Power Supply
- Built-in lithium-ion battery
- Alarm
- Alerts are delivered through vibration, sound, and light signals
- Operating Temperature
- -40℃ to +50℃
- Dimensions
- ≤ 120mm × 85mm × 55mm
- Weight
- ≤ 2.5kg
Application areas
Application areas
Case studies
Application cases
01Radiological Source Search and Localization
An illustrative radiation-response scenario showing systematic survey, localization, measurement and appropriate characterization of a reported radiation alarm.
↗︎
02Mobile CBRN Reconnaissance and Emergency Command
An illustrative scenario for a mobile CBRN reconnaissance and command platform that connects field sensing, communications, coordination and a shared operating picture.
↗︎
03Post-Incident Clearance and Decontamination Verification
An illustrative scenario for repeat measurements after containment, cleanup or decontamination, supporting responsible organizations as they assess whether more action is required.
↗︎
04Nuclear Facility Safety
A nuclear-facility radiation programme separates continuous area monitoring, portable survey, contamination checks and spectroscopic follow-up.
