01GM602
View 01

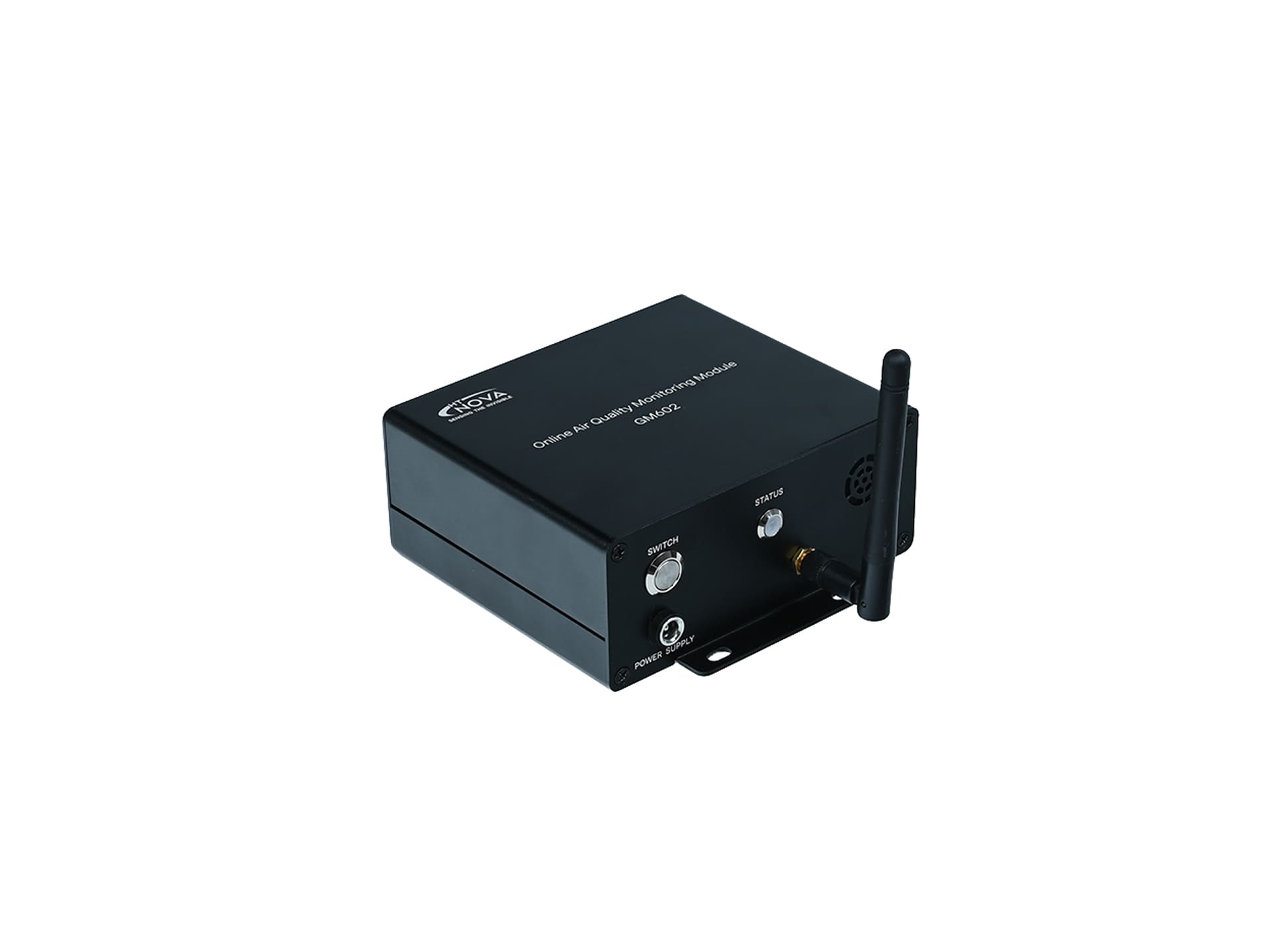

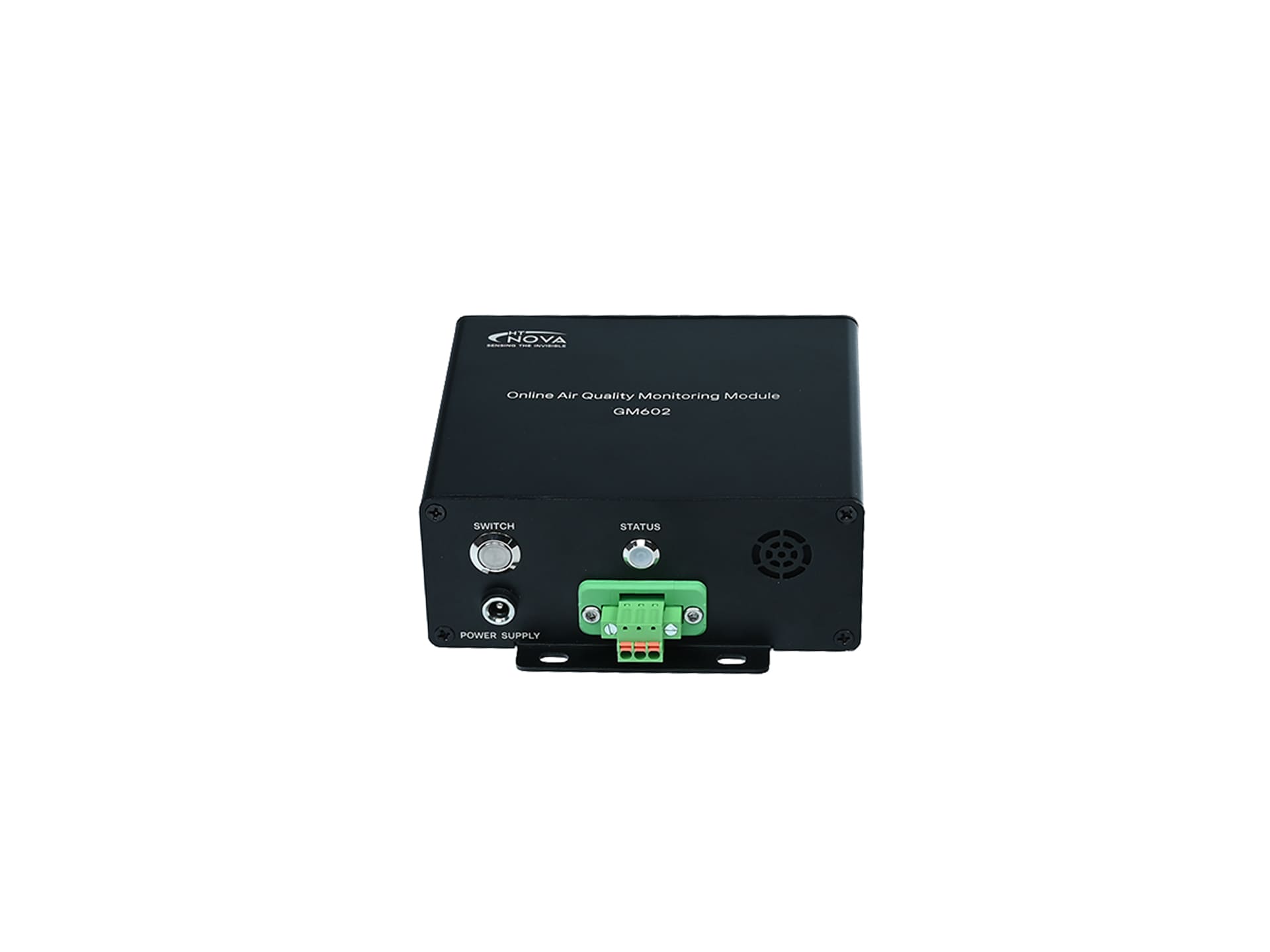

Online Air Quality Monitoring Module
GM602
GM602 is an online gas environment monitoring system for volatile organic compounds and toxic industrial chemicals. It provides real-time monitoring of air pollutants such as benzene, aldehydes and ketones in enclosed spaces, petrochemical facilities and construction sites.
Overview
Product information at a glance
GM602 is an installed instrument rather than a carried one. It is fitted where a hazard is expected to recur - a process area, an enclosed space, a site boundary - and monitors continuously so that a rise in concentration is detected as it happens rather than at the next round of manual checks.
It covers two distinct classes of gas at once, VOCs and toxic industrial chemicals, which is what allows a single installed point to serve a site where solvent vapour and process gases are both credible. The VOC sensor range is selected to suit the application, and the TIC gas types being monitored can be changed dynamically as a site's processes or risk assessment change.
Installation is designed around real plant: the unit supports both fixed mounting and pipeline installation, and communicates over wired or wireless connections depending on what a site can provide.
Visual reference
Product gallery
02GM602
View 02
03GM602
View 03
Key information
Product features
Supports monitoring of two types of toxic and hazardous gases, covering both VOC and TIC
VOC monitoring sensor range options
5 ppm to 10,000 ppm; default is 100 ppm
TIC gas monitoring types can be dynamically changed
Wired or wireless communication modes available
Supports both fixed installation and pipeline installation
Provides 24/7 continuous monitoring
Optional integration with the cloud-based HT-Vision® system, enabling the construction of a monitoring network
Technical data
Technical specifications
- Detection Range
- VOC, TIC
- Sampling Method
- Enhanced diffusion
- Measurement units
- Ppb, ppm, mg/m3
- Communication
- Wired or wireless
- Power Supply
- DC12V
- Dimensions
- < 130 x 130 x 60 mm
- Weight
- < 550g
Application areas
Application areas
Case studies
Application cases
01Advanced Manufacturing Facility VOC and Chemical Safety Monitoring
An illustrative scenario for combining fixed and portable monitoring around chemical storage, process equipment and other risk locations in advanced manufacturing.
↗︎
02Laboratory Air Quality and VOC Monitoring System
A laboratory monitoring plan combines fixed environmental sensing, portable investigation and activity records to understand VOC and air-quality change.
↗︎
03Personnel Health Risk Monitoring
A structured hospital assessment separates occupational radiation, airborne-particle and indoor-air questions so each risk is measured with the appropriate method.
↗︎
04Industrial Gas Monitoring
Risk-based fixed and portable gas monitoring connects target-gas selection, sensor placement, alarms and maintenance to plant response procedures.
