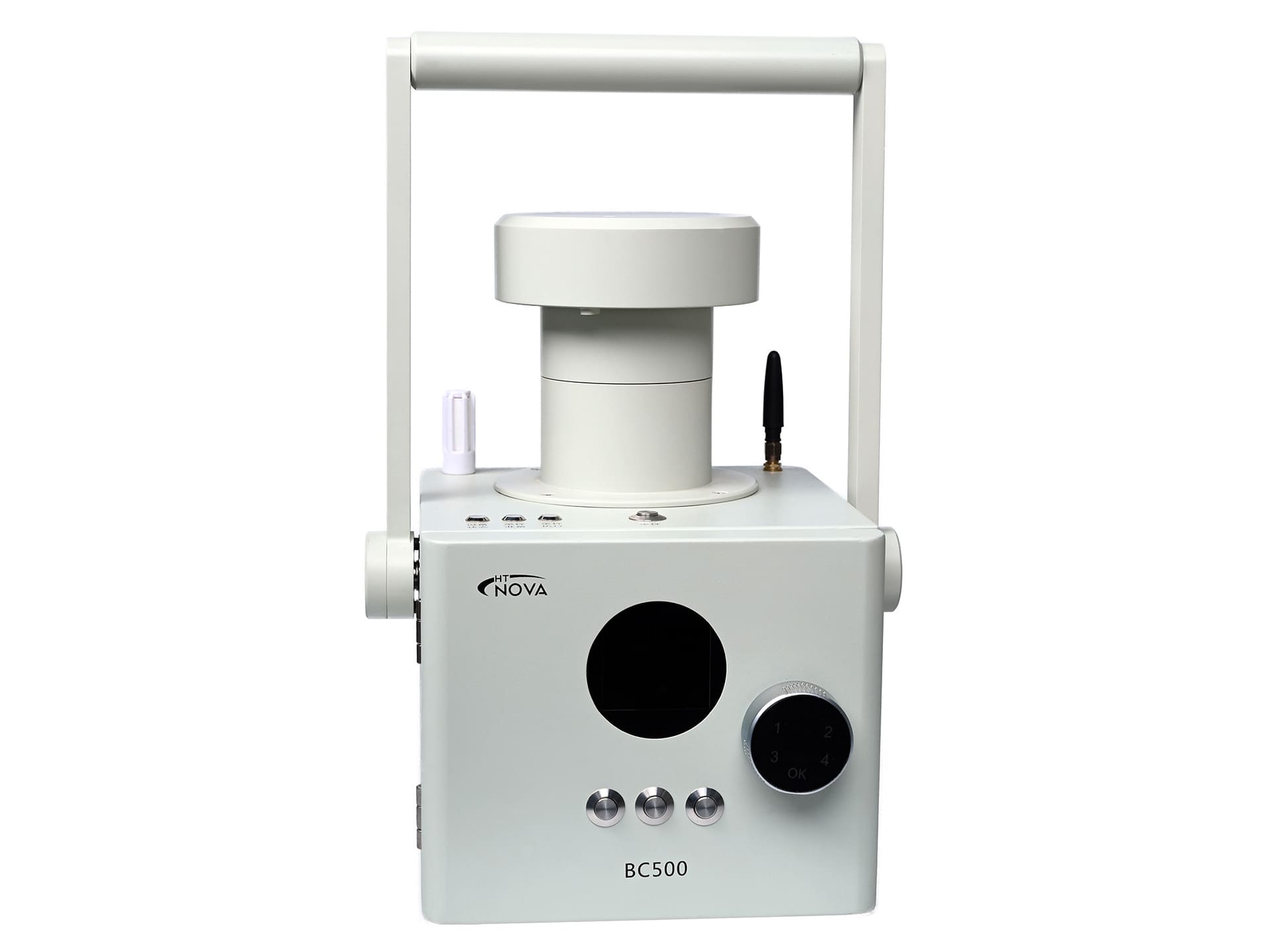

01BC500
View 01
Biological Aerosol Sampler
BC500
BC500 is a portable, all-weather biological aerosol sampler that collects and concentrates airborne particles such as bacteria, viruses, fungi and spores. It takes a snapshot of the environment at preset intervals or on demand, producing samples suitable for PCR and other laboratory analysis.
Overview
Product information at a glance
A detector can tell a team that biological material is present; only a captured sample can tell them what it was. BC500 exists to secure that evidence, concentrating airborne particles into a form a laboratory can work with.
It can run to a schedule, sampling the environment at preset intervals to build a record over time, or be triggered at the moment it matters. Paired with the BM3001 detector, an alarm automatically starts a sampling run, so the air that caused the alarm is captured rather than lost while a team decides how to respond.
The sampler is compact and easily transported, and its filter element is removable and washable, which keeps turnaround between runs short and cleaning straightforward. It complies with the Chinese national standard for bioaerosol collection, and combines with HT-Nova early-warning, detection and sterilisation products to form a complete biological protection chain.
Visual reference
Product gallery

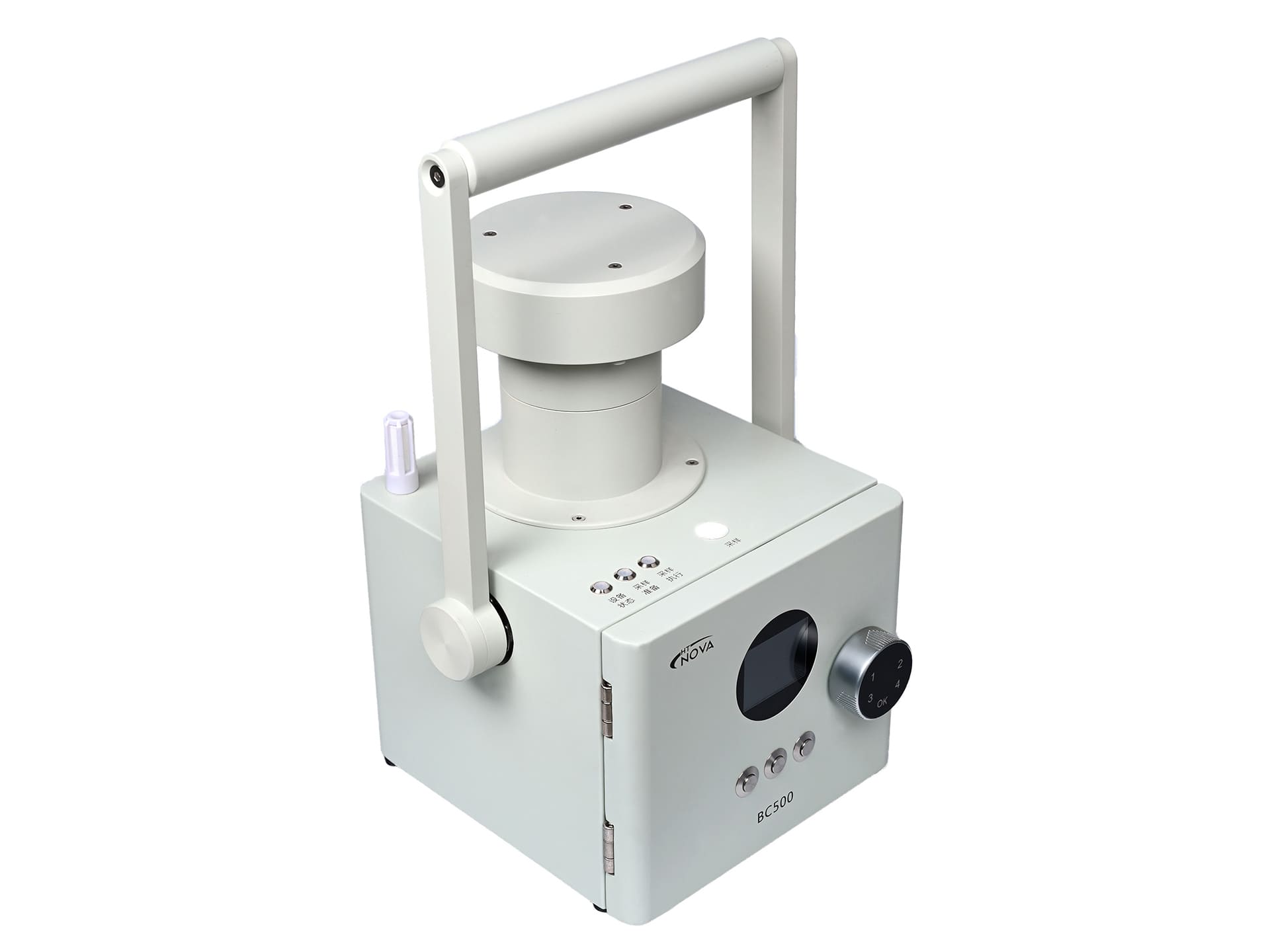

02BC500
View 02
03BC500
View 03
Key information
Product features
Complies with Chinese national bioaerosol collection standard
Combined usage with BM3001
It can be used in conjunction with the biological aerosol alarm device BM3001 to trigger automatic environment sampling
Convenient cleaning
the biological aerosol filter element can be disassembled and easily washed
Compact in size and can be easily transported
Technical data
Technical specifications
- Air Sampling Flow Rate
- ≥ 200 L/min
- Flow Control
- Adjustable flow rate
- Control Method
- Available in both wired and wireless control modes
- Interface
- Serial communication
- Continuous Operation Time
- > 24 hours
- Operating Temperature
- -20 to +45°C
- Weight
- ≤ 5.0 kg
Application areas
Application areas
Case studies
Application cases
01Airborne Biological Monitoring in a High-Risk Facility
An illustrative scenario for continuous bioaerosol monitoring that establishes a baseline, detects abnormal changes and supports targeted sampling for laboratory identification.
↗︎
02Mobile Laboratory Deployment for On-Site CBRN Analysis
An illustrative scenario for bringing selected analytical capability closer to a controlled incident area and shortening the information cycle between collection, analysis and operational decision.
↗︎
03Bioaerosol Monitoring and Airborne Virus Transmission Research
Continuous bioaerosol trends, targeted sampling and laboratory methods support research into how airborne microbial material changes across environments.
↗︎
04On-Site Sampling and Analysis of Suspicious Biological Materials
A suspicious-biological-material response protects the scene, documents the item and transfers controlled samples through a defined chain of custody.
