01CR1000

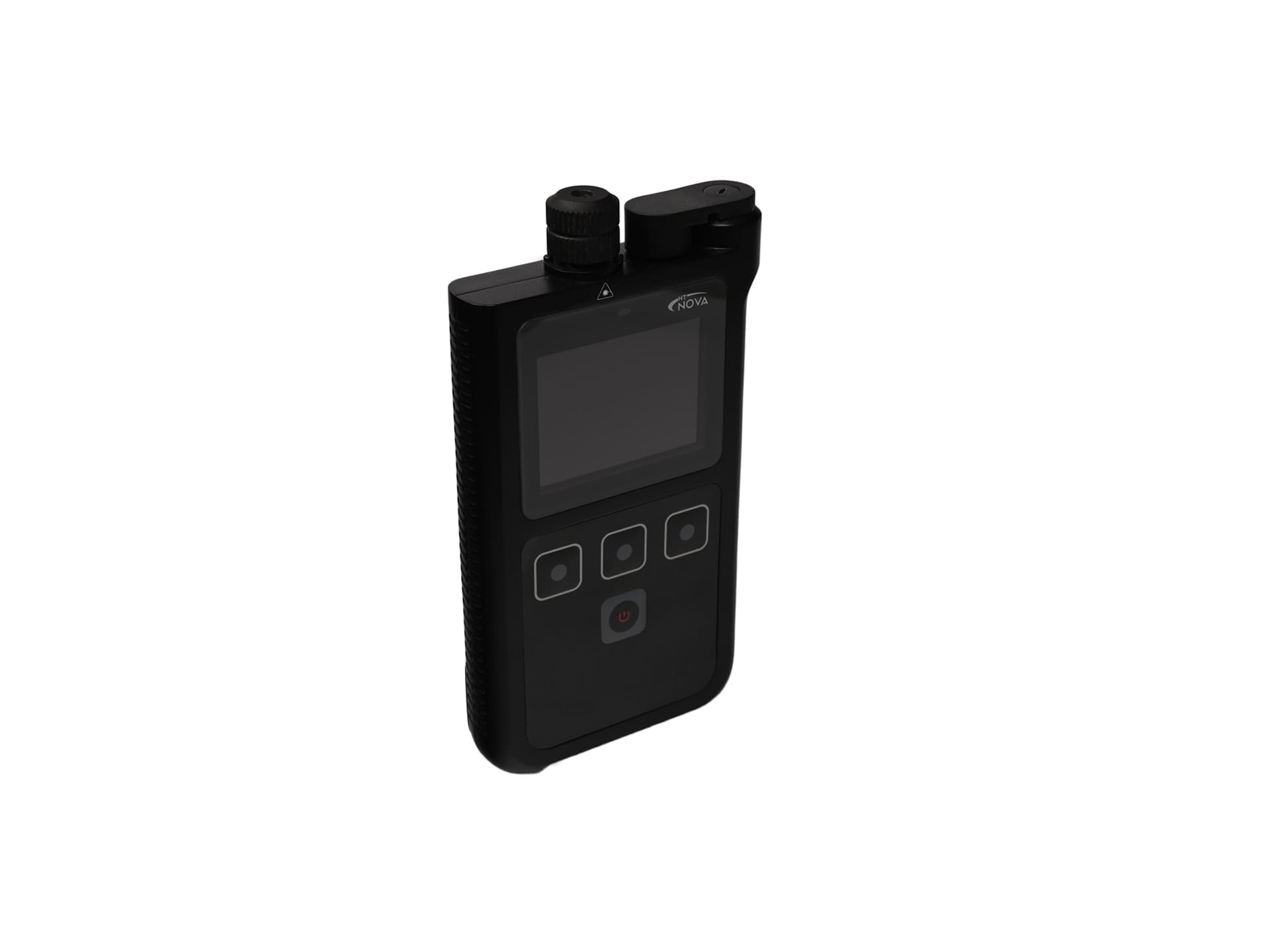

View 01
Handheld Hazardous Substance Identifier
CR1000
CR1000 is a lightweight handheld Raman identifier for front-line security and law-enforcement teams. It identifies drugs, explosives, hazardous chemicals and household chemicals in solid, powder, paste and liquid form, reading suspicious material directly through transparent containers and packaging so nothing has to be opened or sampled.
Overview
Product information at a glance
An officer who encounters an unknown substance needs an answer before deciding how to handle it. CR1000 is built for that moment: it is operated without specialist training, returns an identification within a few seconds, and needs no sample preparation.
Because Raman spectroscopy reads through transparent packaging, the operator never has to open, decant or touch the material. That keeps exposure risk down during roadside checks, premises searches and other situations where the substance is genuinely unknown.
Several inspection modes tune the same instrument between routine screening and closer examination. An optional enhanced detection kit improves performance on narcotics, and optional mobile-app connectivity extends the on-board library with cloud database and cloud computing services.
Visual reference
Product gallery
02CR1000

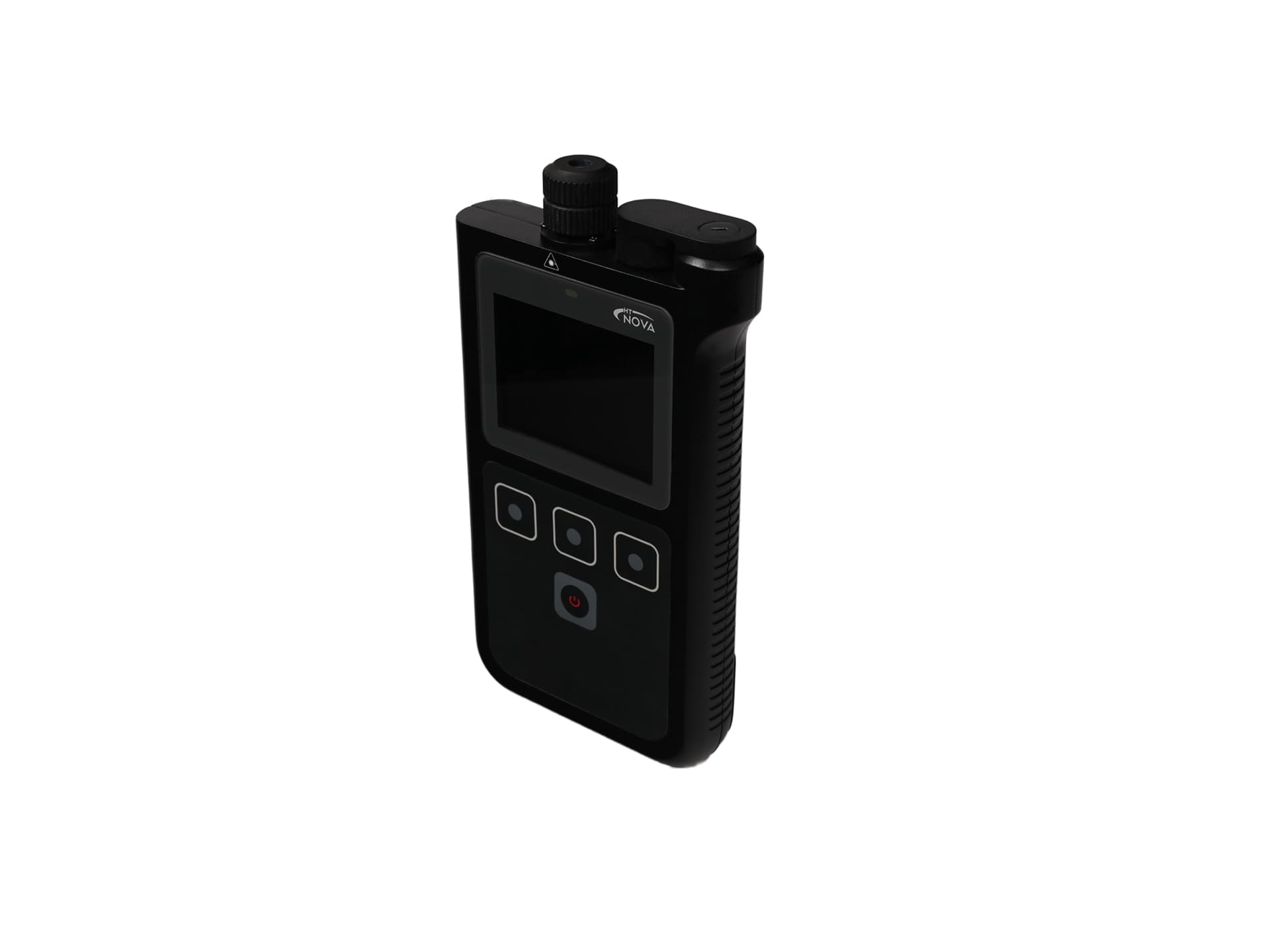

View 02
03CR1000

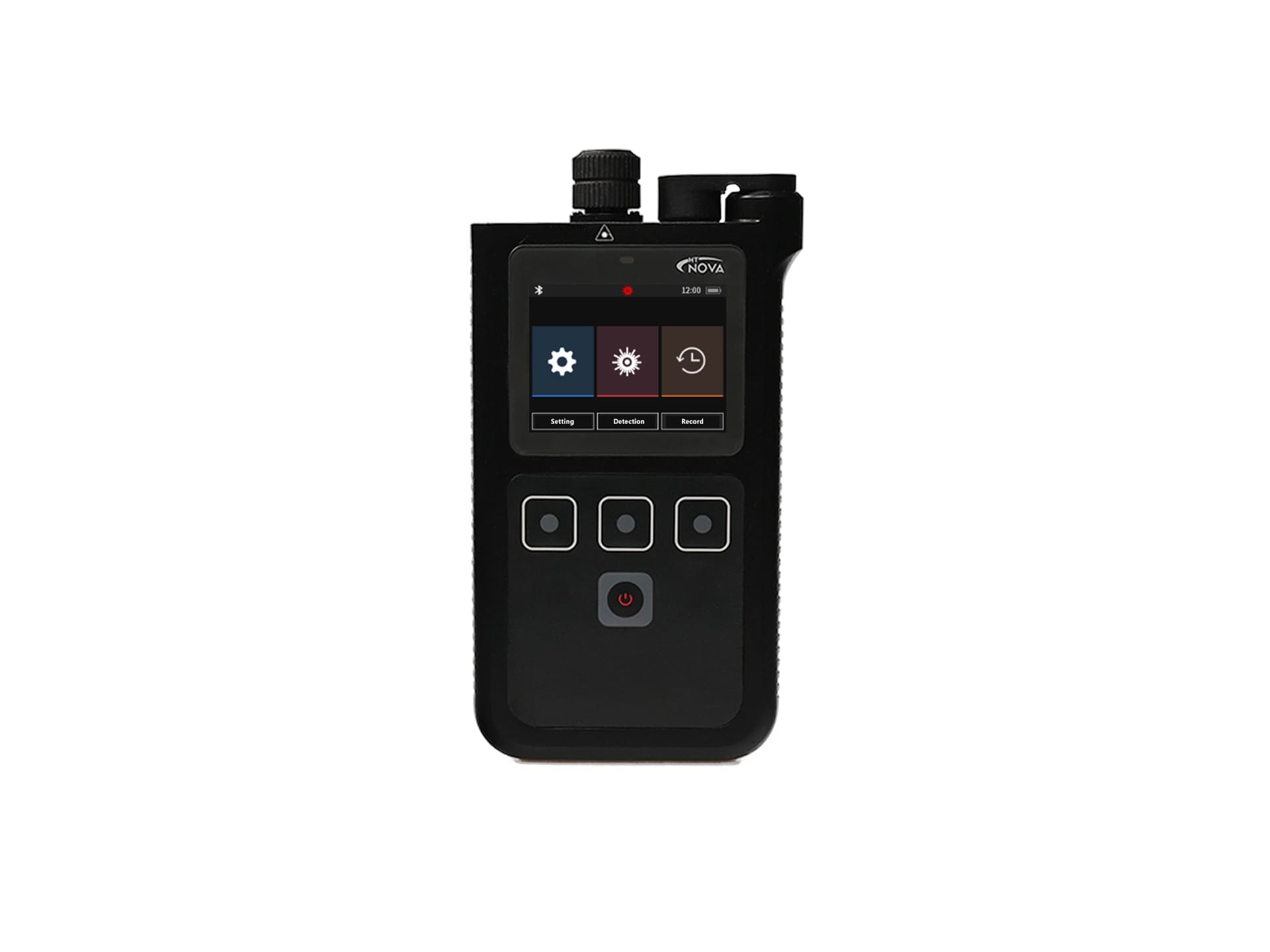

View 03
Key information
Product features
Easy to operate without professional knowledge
Quick identification, usually yielding results in a few seconds
No sample preparation is required, and the tested substance can be directly tested
Can be detected through transparent containers and packaging
Has multiple detection modes
fine inspection mode, safety mode and enhanced mode to adapt to different application requirements
Compatible with HT-FAITHS ® Enhanced detection kit
improves drug detection performance (optional)
Can communicate with mobile APP and enjoy cloud database and cloud computing service (optional)
Technical data
Technical specifications
- Technology:
- Raman
- Detection Speed
- 3-15s
- Laser Wavelength
- 785nm
- Spectral Range
- 200-3200cm⁻¹
- Spectral Resolution
- Please contact sales
- Libraries
- Including common chemicals, industrial chemicals, hazardous chemicals, narcotics, explosives
- Battery Time
- More than 6 hours
- Operating Temperature
- -20 ℃ to +45 ℃
- Wireless Communication
- Bluetooth
- Protection
- IP65
- Dimensions
- ≤ 170mm x 100mm x 30mm
- Weight
- ≤350g
Application areas
Application areas
Case studies
Application cases
01Emergency Response to an Unknown Chemical Release
An illustrative response scenario showing how perimeter monitoring, complementary field instruments and disciplined sampling can support the assessment of an unknown chemical release.
↗︎
02Suspicious Package and Mailroom CBRNE Screening
An illustrative security scenario for evaluating a suspicious package through isolation, carefully selected CBRNE screening technologies and controlled escalation.
↗︎
03Customs Prohibited Goods Inspection
Layered customs secondary inspection applies material identification, trace screening and radiation assessment according to the initial indicator and legal procedure.
↗︎
04Law Enforcement
Specialist detection supports law-enforcement response to a suspicious substance after scene control, threat assessment and coordination with HAZMAT or EOD authorities.
