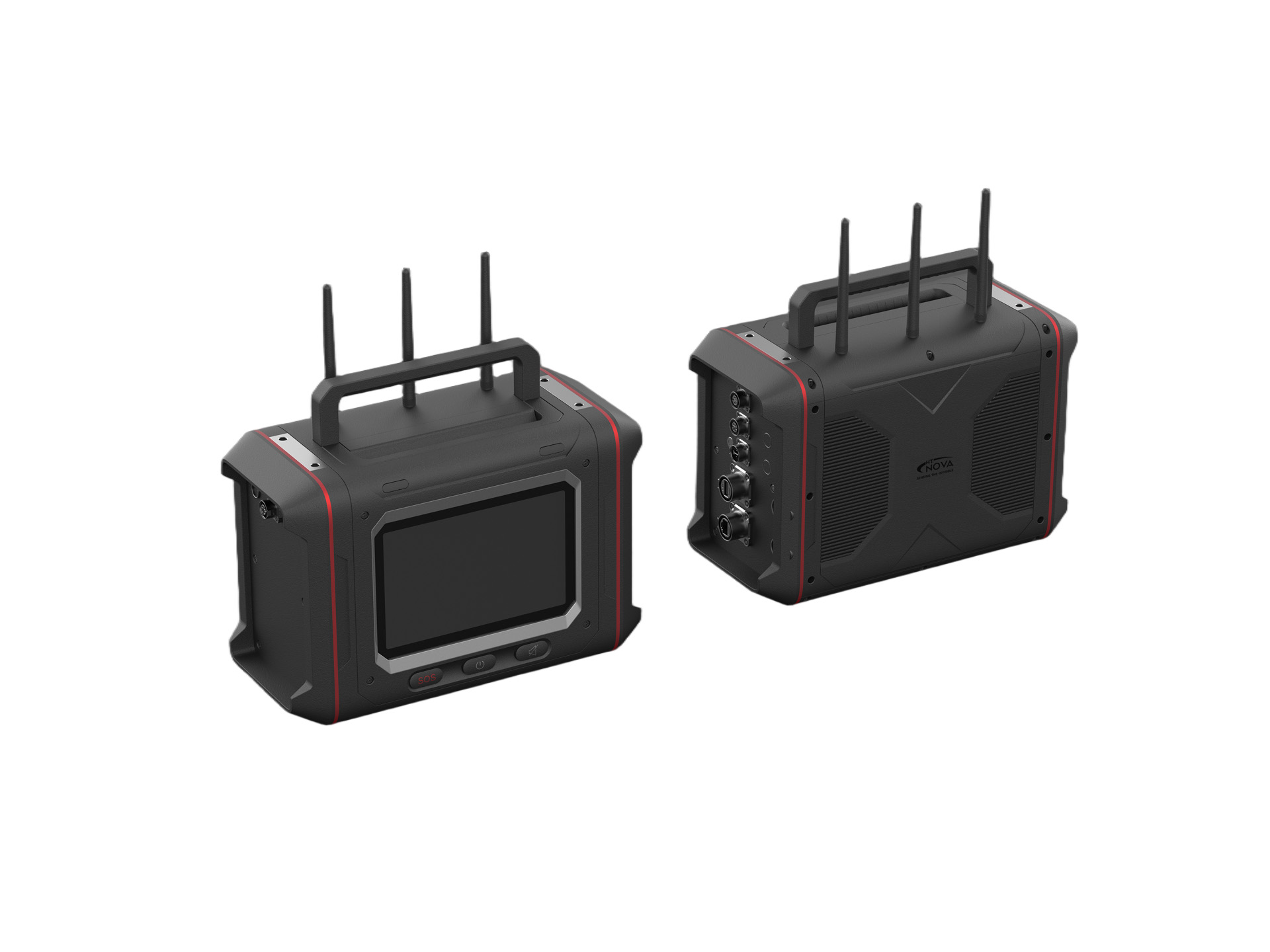

01GD624
View 01
Environmental Chemical Monitoring System
GD624
GD624 is an environmental chemical monitoring system that detects up to 24 gases at once using multi-sensor, multi-channel direct detection, integrating optical ionization, electrochemical and infrared sensors. It is built for real-time monitoring of toxic, hazardous and flammable gases in emergency response, firefighting and industrial environments.
Overview
Product information at a glance
An incident scene rarely involves one gas, and the picture changes as it develops. GD624 monitors up to twenty-four gases and vapours simultaneously and keeps monitoring, so responders work from a live picture of the atmosphere rather than a series of spot readings.
The system can be deployed fixed or mobile and starts with one click, which matters when it is being set up at a cordon under time pressure. Alongside gas concentrations it records environmental parameters including temperature, humidity, pressure, wind speed and wind direction, giving the context needed to interpret where a release is going.
GD624 works as a standalone unit or as a networked system: collection and control terminals can each operate independently, one control terminal supports multiple collection terminals, and built-in 4G links the system to a remote cloud for management, control and analysis. Collection terminals also support external video and thermal imaging, and data can be stored, replayed, exported and analysed after the event.
Visual reference
Product gallery

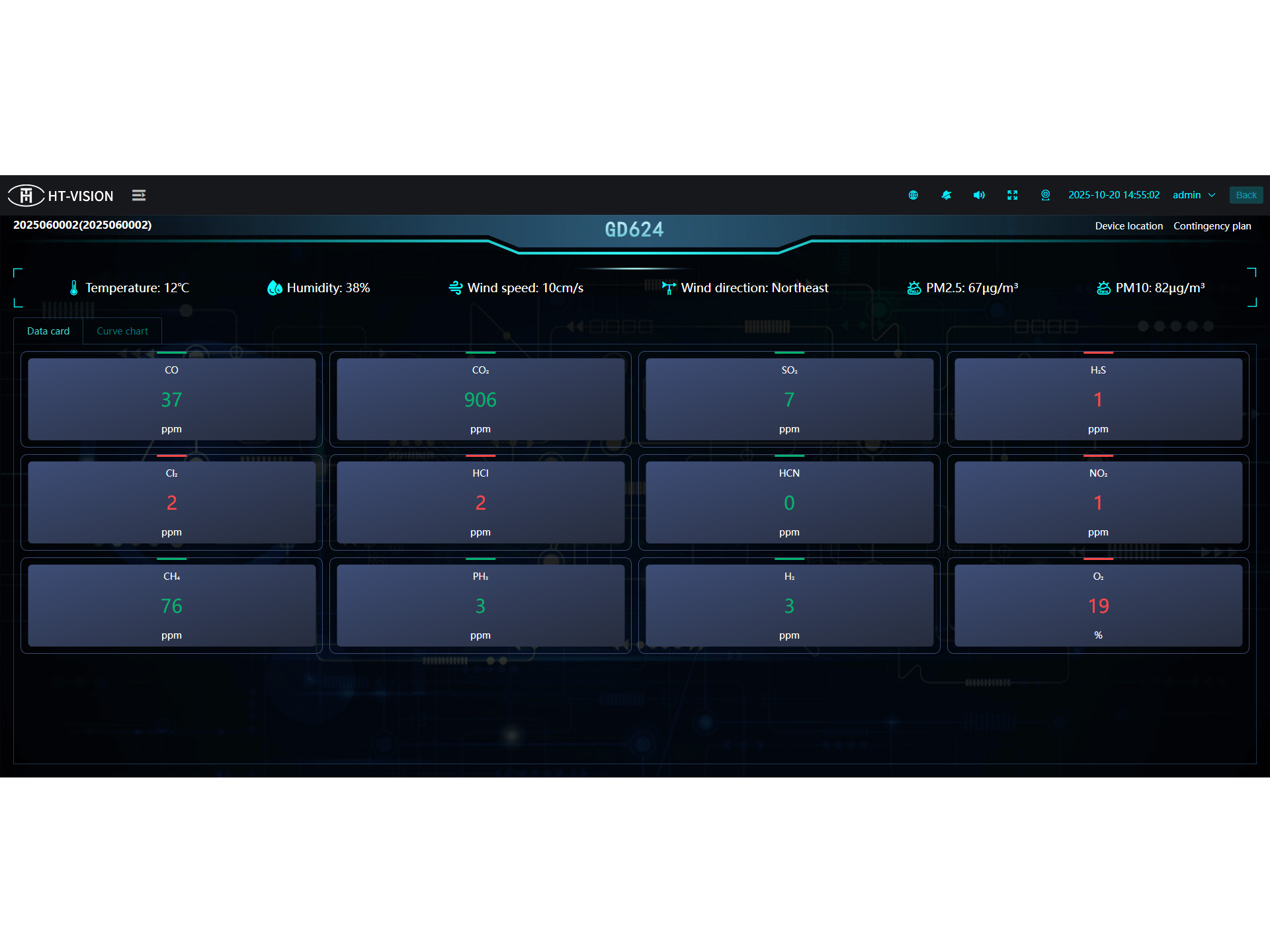

02GD624
View 02

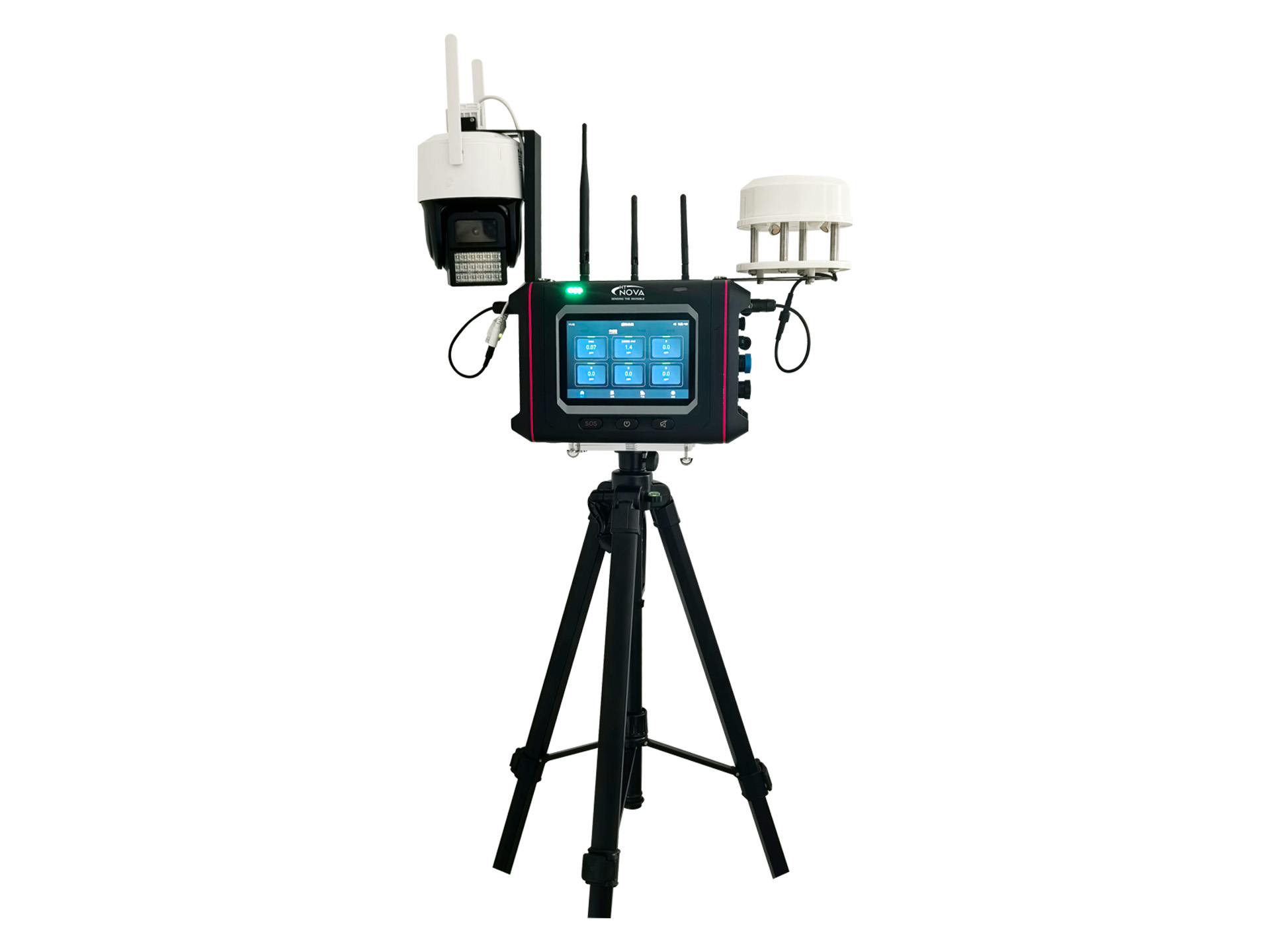

03GD624
View 03
Key information
Product features
Multi-gas detection - Detects up to 24 gases simultaneously, covering toxic, flammable, and environmental gases.
Integrated environmental sensing
Integrated environmental sensing - Monitors temperature, humidity, pressure, wind speed, and direction alongside gas data.
Smart networking
Smart networking - Supports real-time data transmission, system interconnection, and integration with central monitoring platforms.
Intelligent analysis - Built-in algorithms for sensor fusion, self-diagnostics, and adaptive calibration.
Rugged modular design
Rugged modular design - Reliable for outdoor or industrial use, with a modular architecture allowing easy sensor replacement and expansion.
Technical data
Technical specifications
- Detection Target
- Industrial toxic gases, volatile organic compounds (VOC), radiation, image data, etc.
- Simultaneous Detection Ability
- Up to 24 gases
- Sampling Method
- Pump suction type; diffusion type
- Cold Start
- Less than 30 seconds
- Analysis Time
- Less than 15 seconds
- Power Supply
- Built-in rechargeable lithium battery; continuous operation time ≥ 4 hours
Case studies
Application cases
01Emergency Response to an Unknown Chemical Release
An illustrative response scenario showing how perimeter monitoring, complementary field instruments and disciplined sampling can support the assessment of an unknown chemical release.
↗︎
02Advanced Manufacturing Facility VOC and Chemical Safety Monitoring
An illustrative scenario for combining fixed and portable monitoring around chemical storage, process equipment and other risk locations in advanced manufacturing.
↗︎
03Fire Emergency Handheld Devices
Portable atmospheric monitoring supports firefighters and HAZMAT specialists when smoke, industrial chemicals or unknown materials complicate an emergency scene.
↗︎
04Industrial Gas Monitoring
Risk-based fixed and portable gas monitoring connects target-gas selection, sensor placement, alarms and maintenance to plant response procedures.
