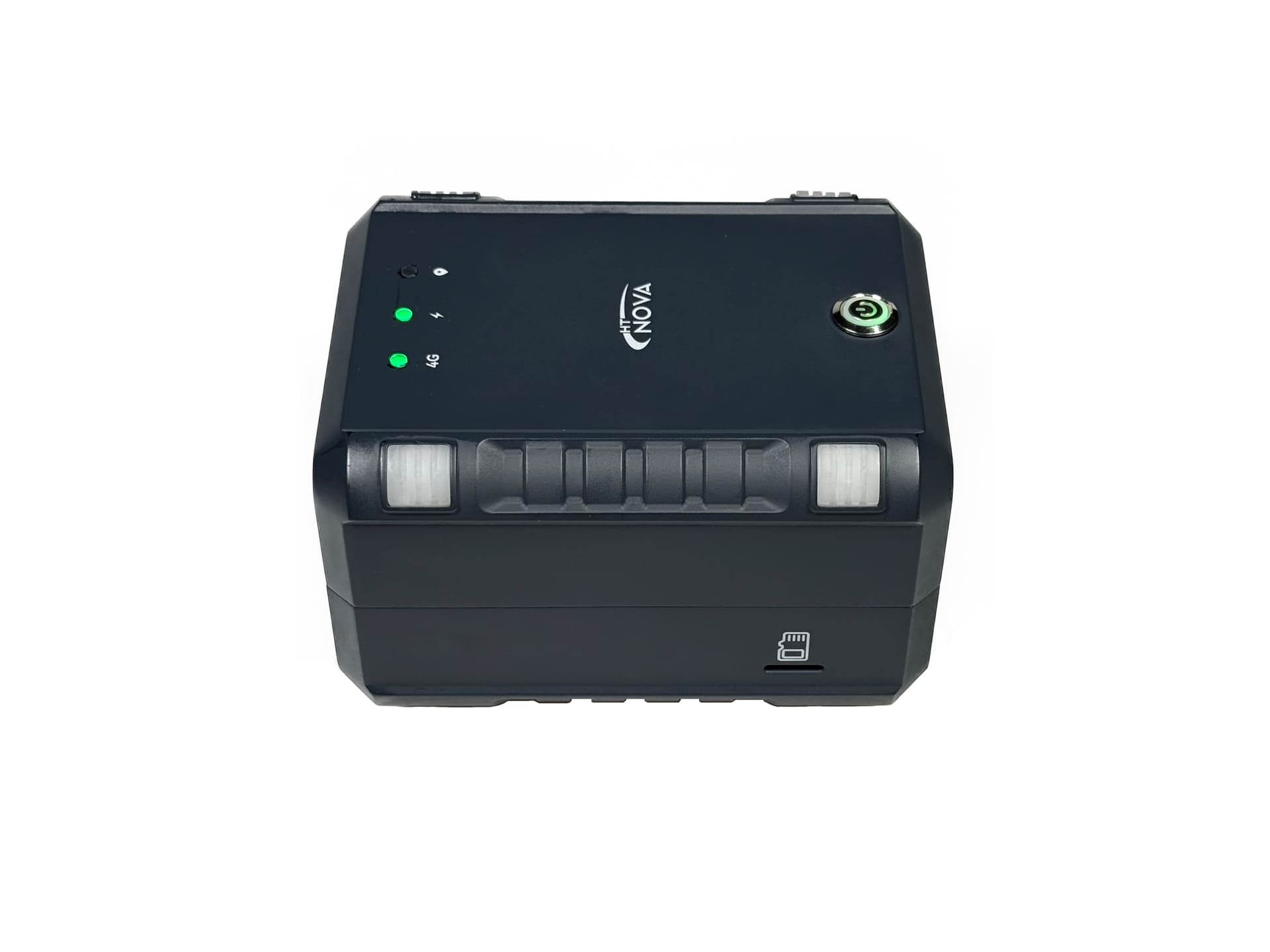

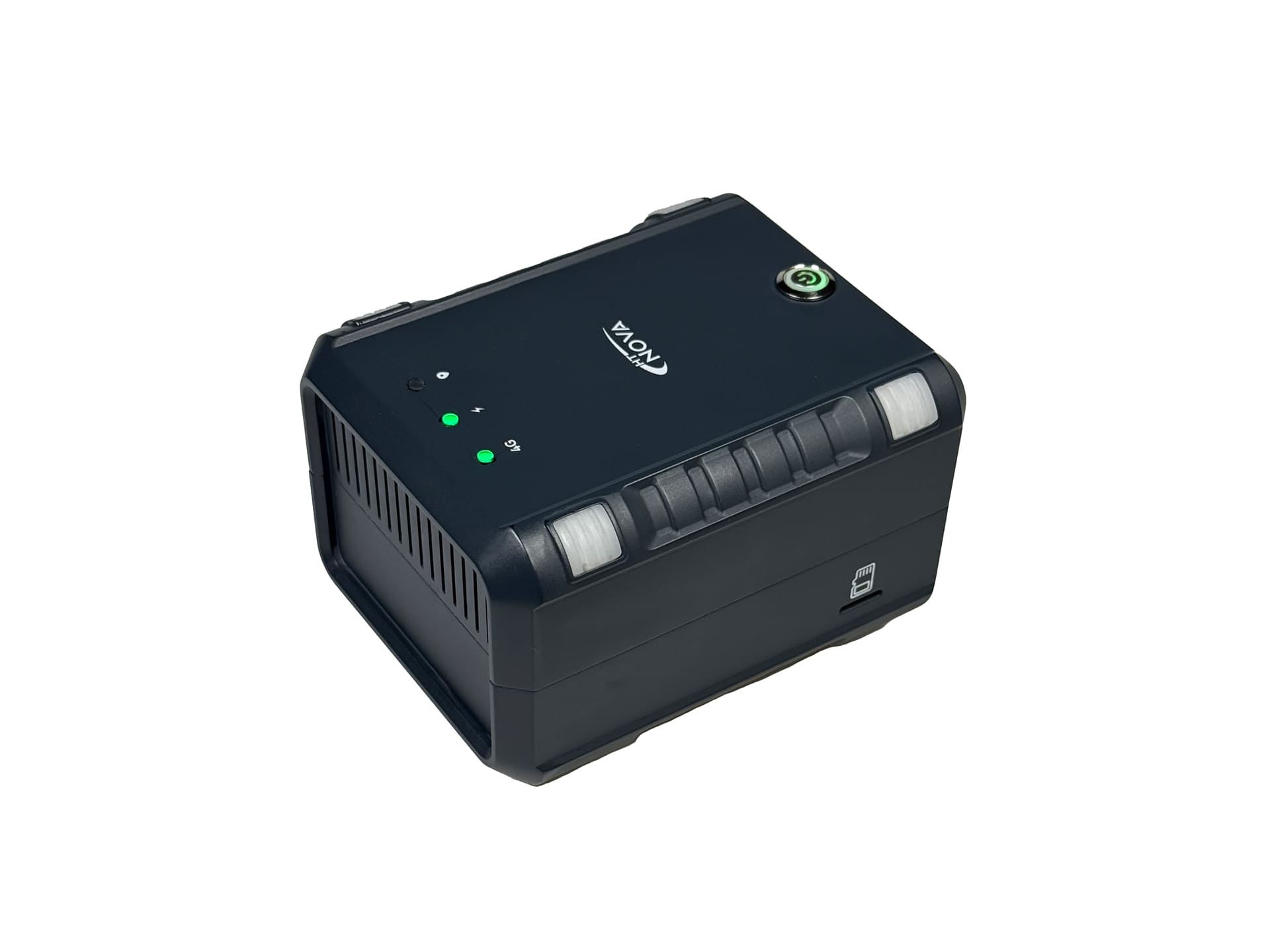

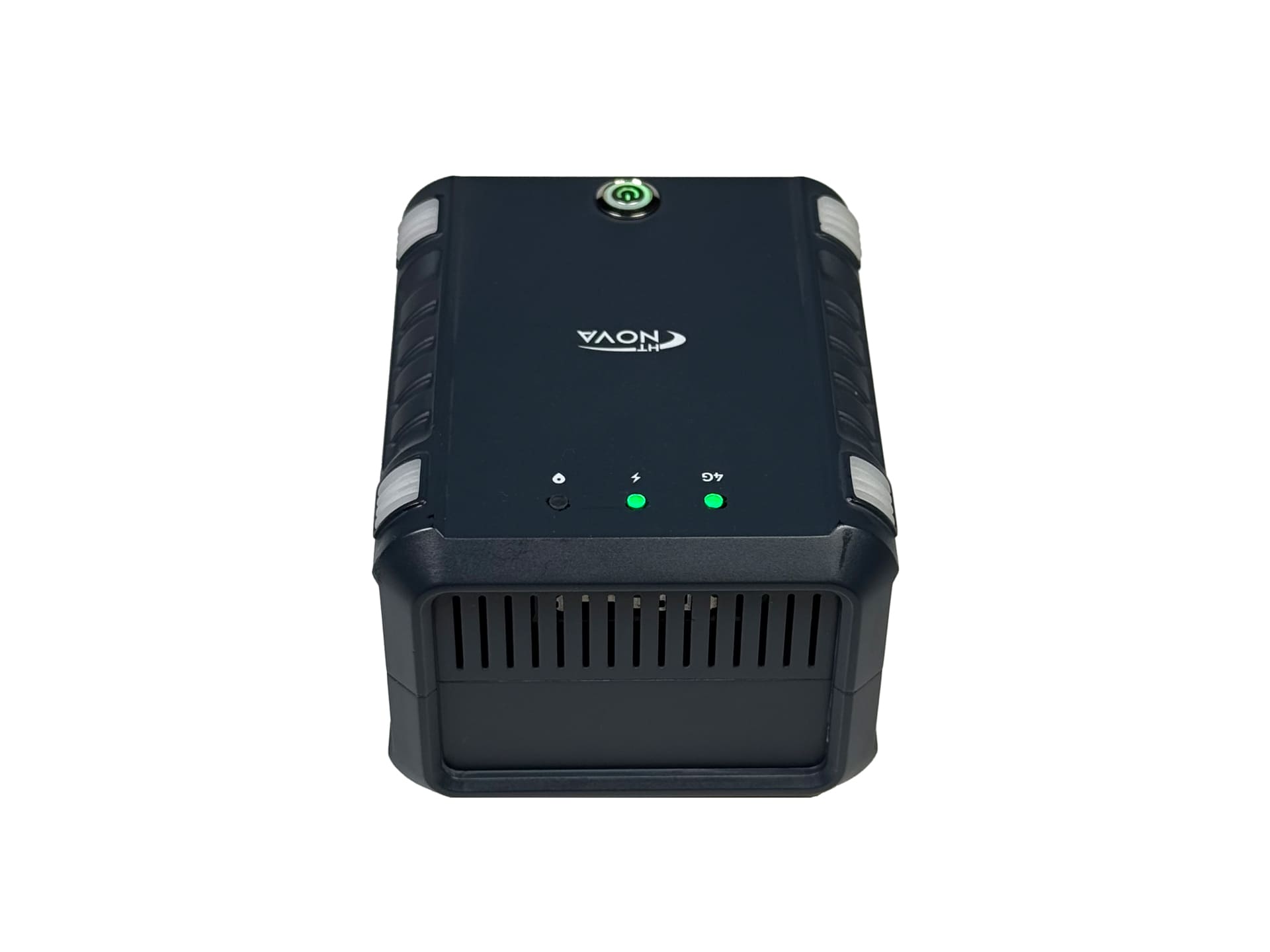

Airborne Nuclear and Gas Monitoring Module
The MN808 airborne monitoring module is a high-performance detection unit designed for nuclear contamination, toxic gases and combustible gases. It uses a modular architecture and can simultaneously detect up to eight types of gases with freely selectable sensor combinations. Sensors can be hot-swapped during operation, enabling true plug-and-play flexibility. Optional sensor types include photoionization (PID), electrochemical, catalytic combustion, semiconductor and nuclear radiation (gamma).
The module features built-in 4G wireless communication and Beidou positioning, supporting platform-based management without distance limitations. It can monitor a wide range of gases (combustible gases, industrial toxic gases, chemical warfare agents) as well as nuclear radiation. The device is water-resistant and explosion-protected.
4G wireless transmission with no distance limitation
Backend management software with real-time monitoring on both PC and mobile
Real-time inspection in hazardous areas
True plug-and-play sensors with hot-swap capability
Fully expandable sensor configuration based on user needs
Supports multiple measurement units such as ppm, ppb, mg/m³, %Vol and %LEL
|
Specification |
Detail |
|
Detection Targets |
O₂, CO, Cl₂, CH₄, NH₃, H₂S, combustible gases (LEL), customer configurable sensor selection plus optional PM2.5/PM10, temperature and humidity sensors |
|
Sampling Method |
Passive diffusion |
|
Platform Functions |
Real-time data upload, route mapping for inspections, audible and visual alarms, device management, regional visualization |
|
Communication |
4G and Beidou positioning |
|
Protection Rating |
IP54 |
|
Operating Temperature |
-20°C to +50°C |
