Portable Gas Chromatography Analyzer

CP1000

Name: CP1000
Brand: HT-Nova

CP1000 is a portable gas chromatograph analyzer for volatile organic compounds, providing both qualitative and quantitative results from gas samples. Battery powered and compact, it runs continuous total-VOC monitoring or switches to analysis mode to measure specific hazardous substances in workplace air and explosion-hazard areas.

Request information Downloads

Overview

Product information at a glance

Total VOC readings tell a team that something is present; chromatography tells them what. CP1000 covers both in one portable instrument, so a survey can start with continuous monitoring of overall concentration and then resolve the specific compounds behind a reading without returning to a laboratory.

The analyzer is highly integrated: everything needed for online benzene-series monitoring is built in, and the workflow from sampling through to data analysis is automated. A dual-column gas path returns benzene in about thirty seconds and the full BTEX group in around three minutes, with PID detector technology working at ppb sensitivity.

An on-board library covers more than thirty VOCs and can be expanded. Rechargeable batteries and replaceable consumables keep maintenance low, and the instrument can be mounted on vehicles, UAVs and robots where an area is unsafe to enter on foot.

Visual reference

Product gallery

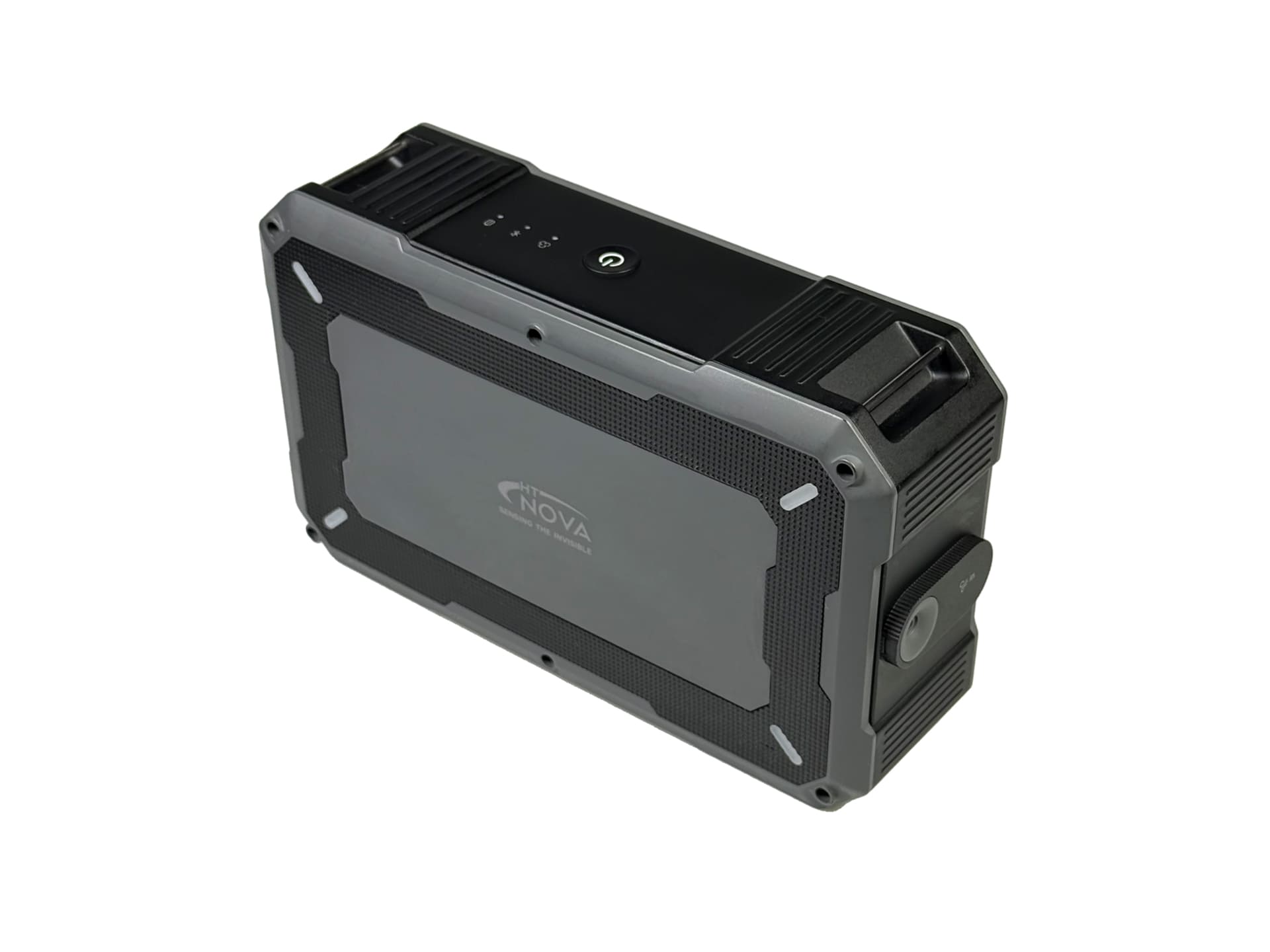

01CP1000

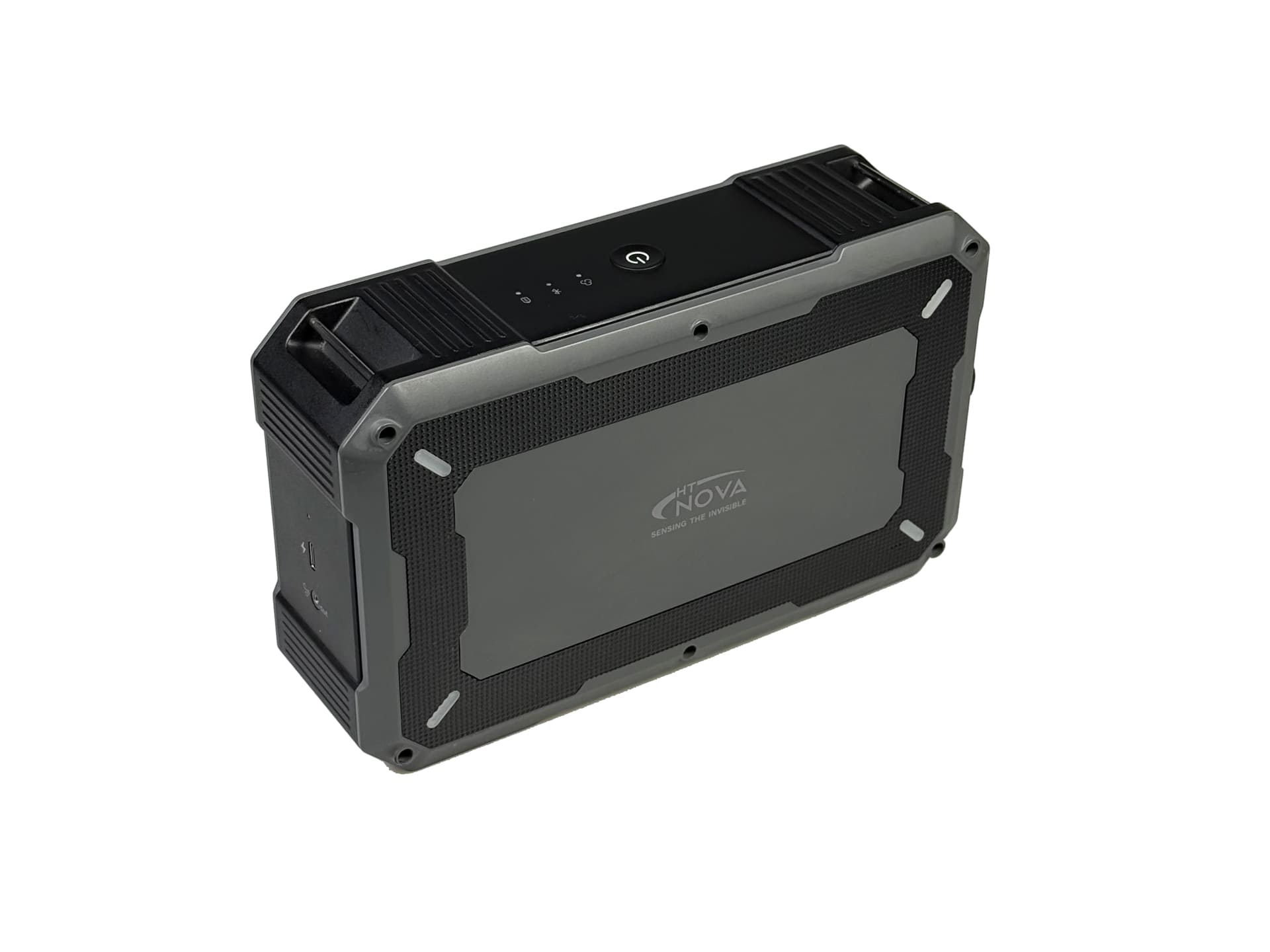

02CP1000

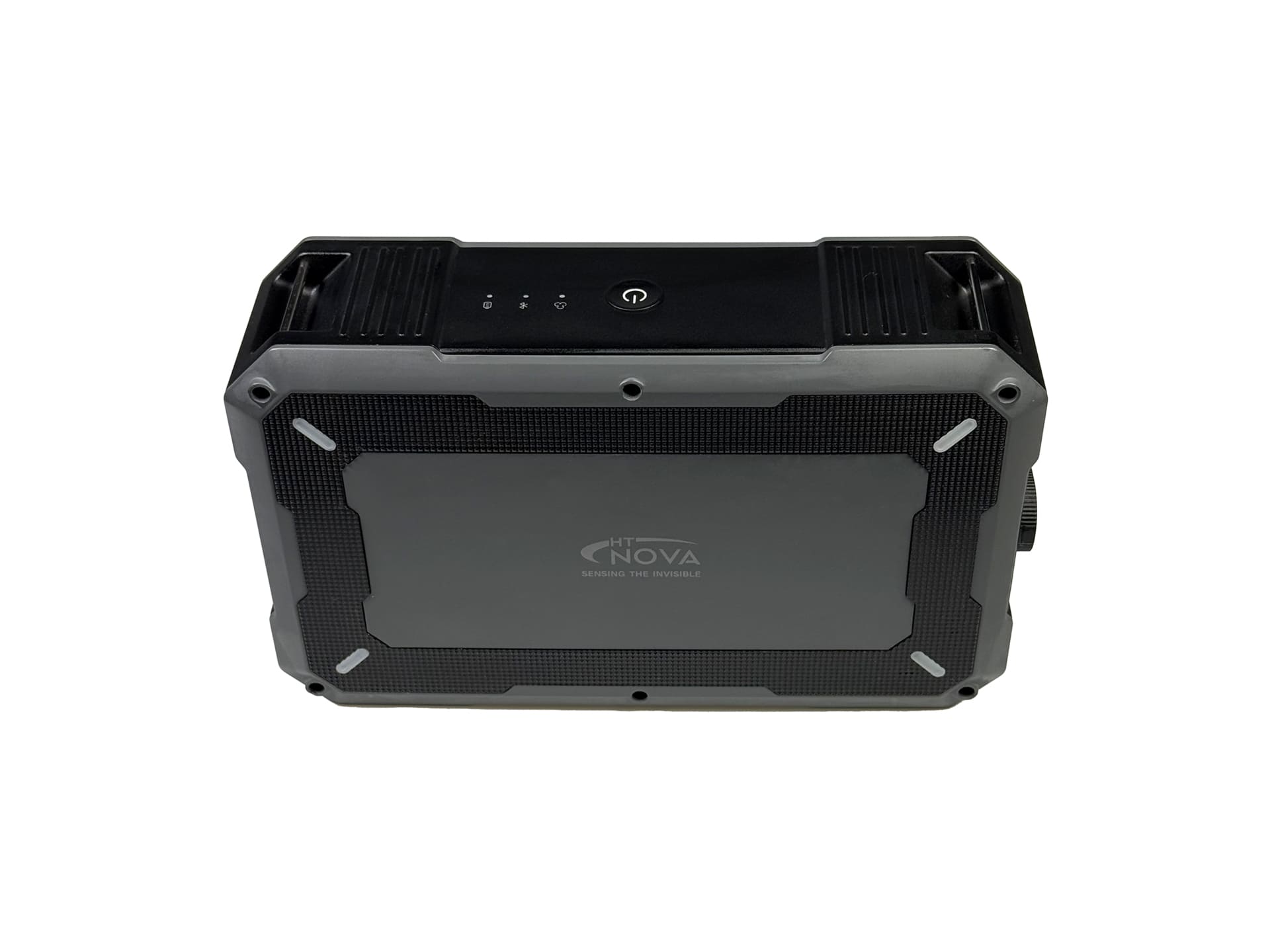

03CP1000

Key information

Product features

Highly Integrated Design

All system configurations required for online monitoring of benzene-series characteristic factors are integrated within the portable instrument, solving the challenges of transportation, carrying and operation for field personnel.

Intelligent Automation

Equipped with an intelligent automated workflow from sample injection to data analysis, reducing operational complexity and improving on-site efficiency.

High Sensitivity

Utilizes advanced detector technologies such as PID sensors, achieving detection sensitivity down to ppb levels, suitable for trace VOC detection.

Wide Detection Coverage

Built-in library of more than 30 VOC target compounds, with the ability to add more substances based on user requirements.

High Integrability

Lightweight and compact design allows mounting on various mobile platforms including vehicles, drones and robots for mobile detection tasks.

Technical data

Technical specifications

Startup Time: No more than 10 minutes
Operating Modes: Patrol mode, automatic component analysis, manual analysis mode
Analysis Cycle: Minimum 60 seconds, maximum detection time no more than 300 seconds
Communication: WiFi, GPS, Bluetooth, RS232
Battery Life: Built-in power supply, operating time over 6 hours
Dimensions: ≤ 225 × 135 × 66 mm
