01VS220
View 01

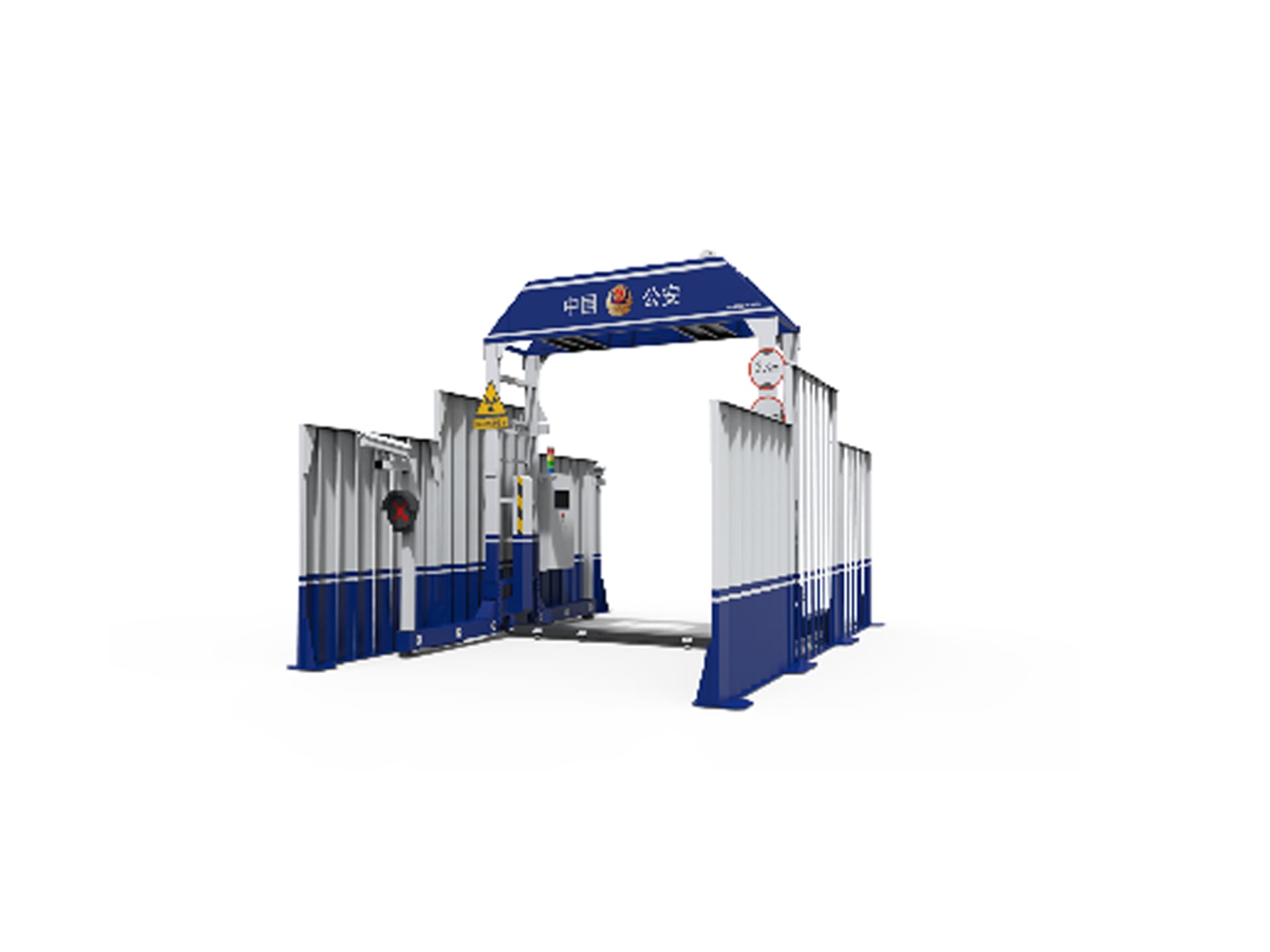

Vehicle CBRNE & X-ray inspection system
VS220
VS220 is a vehicle CBRNE and X-ray inspection system for rapidly checking passenger vehicles for concealed prohibited items. It combines a low-energy X-ray machine, high-speed high-resolution detector units and a nuclear detection module to screen vehicles as they pass.
Overview
Product information at a glance
Cars and vans are difficult to search: concealment is easy, a thorough manual inspection is slow, and at a busy entrance the volume of traffic means that searching properly and keeping vehicles moving pull against each other. VS220 is built for that conflict, screening vehicles as they drive through rather than requiring them to be stopped and examined.
The system performs top-down perspective scanning together with nuclear detection while capturing chassis images, so concealed radioactive materials, leaked toxic chemicals, weapons, tools, drugs and other prohibited items can be identified without opening the vehicle. Scanning is 360 degrees without blind spots, and imaging stays clear at low radiation intensity.
Data is transmitted to a terminal for centralised monitoring, so results are assessed away from the lane itself. The system has a small footprint and can be deployed and redeployed quickly, which suits temporary checkpoints and changing security postures as well as permanent installations.
Visual reference
Product gallery
Key information
Product features
Vehicle x-ray scanning with integrated CBRNE detection and monitoring system
Comprehensive detection of prohibited Items
Rapid deployment and quick redeployment into another area
360-degree scanning without blind spots
Strong scalability
Technical data
Technical specifications
- System Architecture
- Vehicle inspection system and integrated CRBNE detection & monitoring module
- Detection Range
- Controlled prohibited items; nuclear radiation gamma rays; chemical agents; industrial toxic and hazardous substances
- Throughput
- >30 vehicles/hour
- Inspection Software
- Displays vehicle scanning images, image zoom in/out, dual-energy display, and data storage
- Capture System
- Automatically performs license plate recognition on vehicles entering the inspection area
- Operating Temperature
- -30 to +50 degrees Celsius
Case studies
Application cases
01Vehicle Security Inspection
Vehicle secondary inspection combines primary imaging and access control with targeted radiological, trace or material assessment when an indicator requires follow-up.
↗︎
02Customs Prohibited Goods Inspection
Layered customs secondary inspection applies material identification, trace screening and radiation assessment according to the initial indicator and legal procedure.
↗︎
03Integrated CBRNE Security for a Major International Event
An illustrative operating scenario for layered CBRNE screening, monitoring and coordination at a major international event. HT-Nova equipment has supported detection operations associated with major events in China.
↗︎
04Upgrade of On-Site Security Checks
A layered security upgrade adds risk-based CBRNE screening, mobile assessment and command reporting to an established venue-protection plan.
